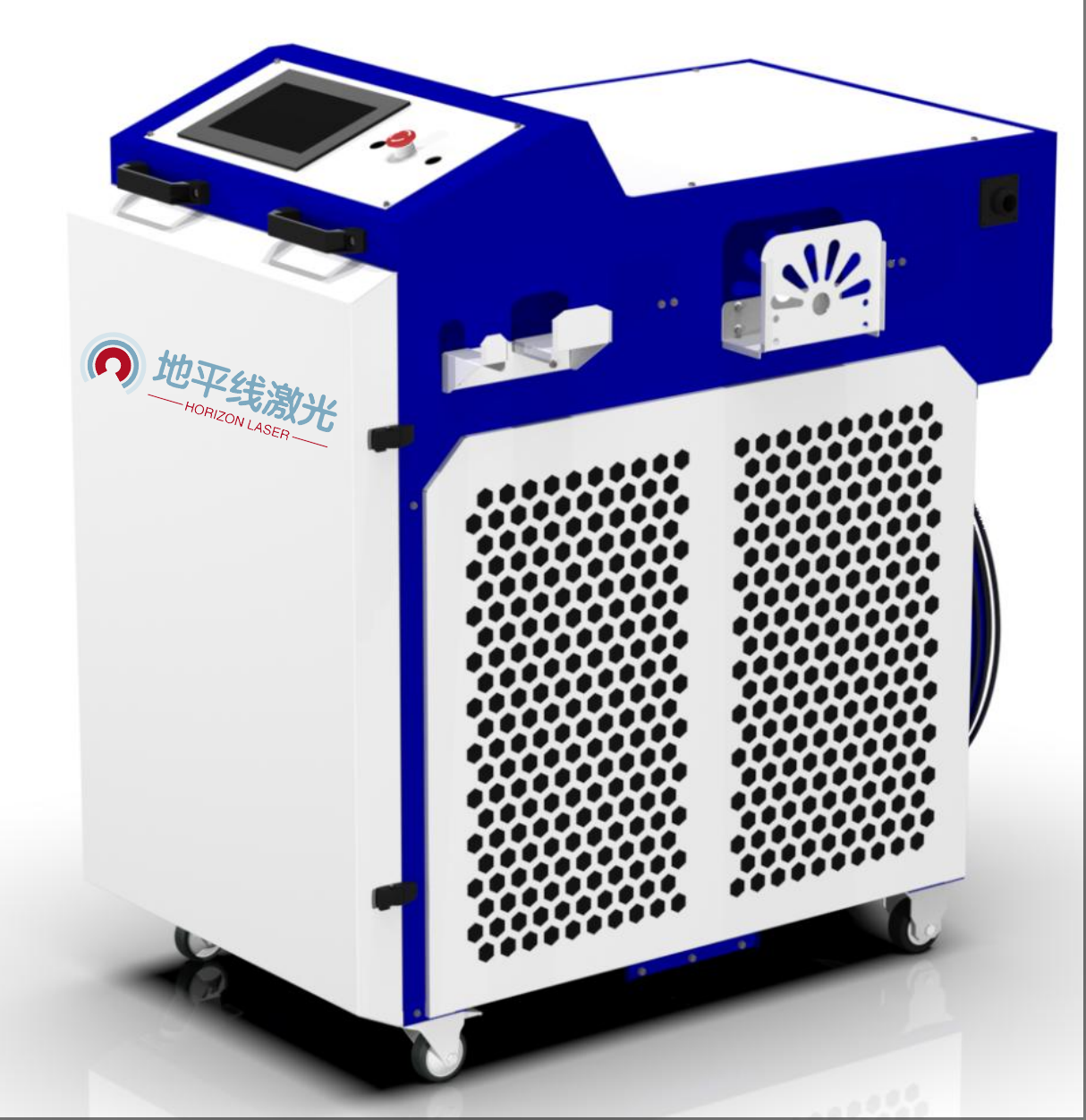

Description
Technical Parameters
| Device model | DPX-C6000 |
| Laser type | CW fiber laser source（Wavelength: 1080±3nm） |
| Laser power | 6000W |
| Cooling method | Water cooling |
| Power adjustment range | 10%～100% |
| Cleaning mode | Continuous cleaning |
| Adjustable clean width | 500 mm |
| Welding gun cable length | Around 19m |
| Cleaning gun weight | 2.2kg |
| Product size（L*W*H） | 1155*685*1250mm |
| Total weight | 206kg |
| Machine power consumption | <26.5kw |
| Operating voltage | Three-phase five-wire 380VAC |
| Working environment | Temperature：0～40℃、Humidity<70% |
| Safety light emission system | 1. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low.
2. Safety lock button, double-click button double-protective measures, double insurance to emit light. |
Advantages
- The cleaning range can be adjusted to 500mm to meet the cleaning needs of large-sized products.
- 20 meters long distance optical fiber transmission, movable operation, cleaning large fixed equipment, complex shape products, hidden parts.

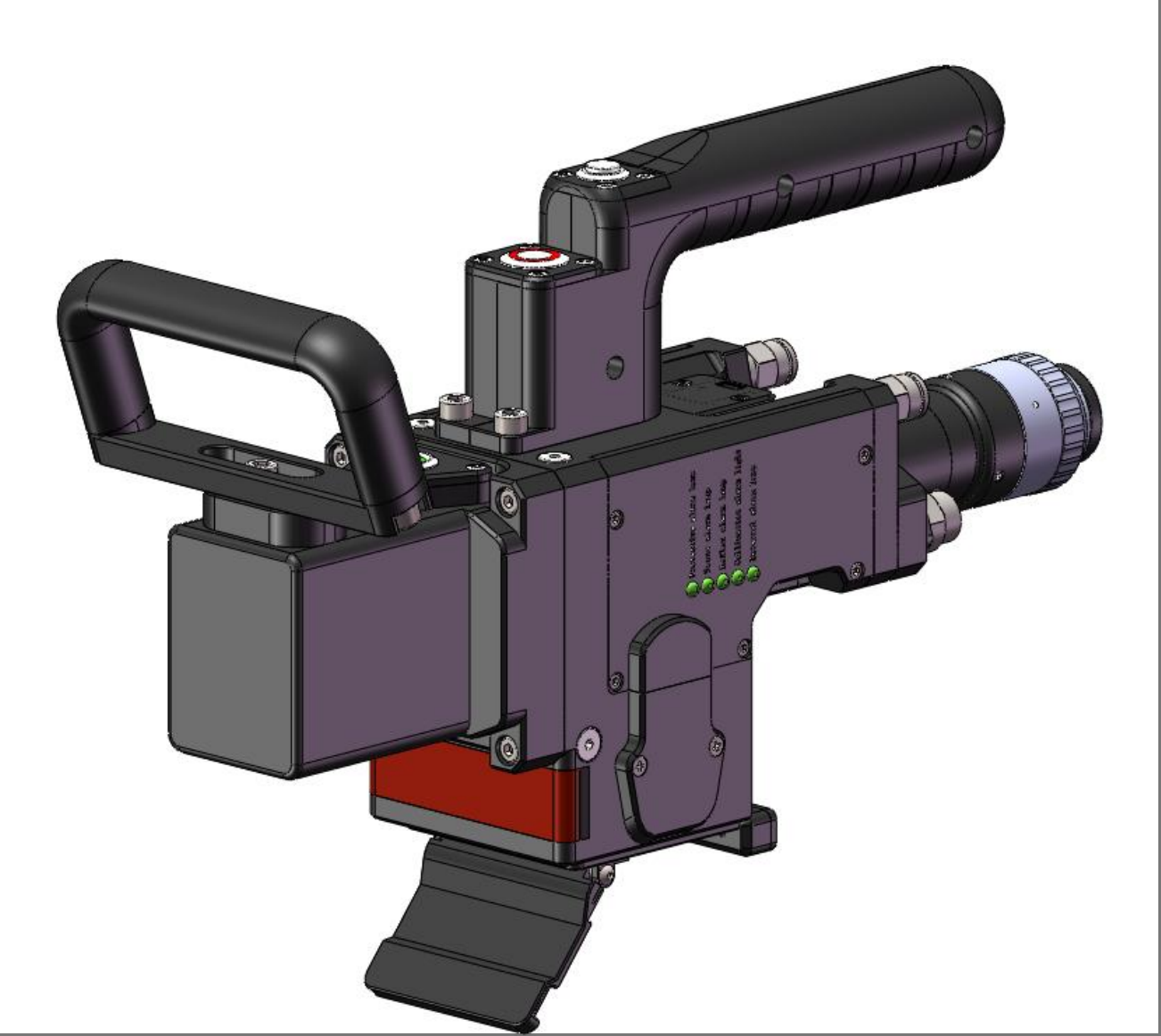

- The double handle design of handheld cleaning head is comfortable to hold, suitable for long-term handheld cleaning operations.
- The cleaning head has multiple built-in temperature monitoring, and the safety lock switch is combined with the double-click light-out button to protect the operation without worries.
- Support mobile APP interconnection to hold the cleaning head and monitor the status in real time.
- The whole machine and cleaning head are water-cooled to ensure long-term stable work.
- 9 sets of cleaning process parameters can be preset, and can be applied to the cleaning of different products by calling them directly.
- It uses continuous laser light source, which has strong energy for cleaning thick rust layers on the surface of pipes, ships, rails and other products.
- The cleaning materials are wide and can remove resin, oil, stains, dirt, rust, coating, coating, coating, paint, etc.

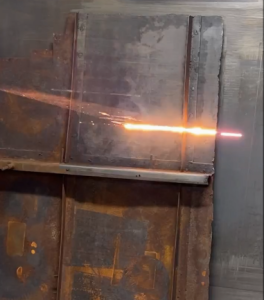

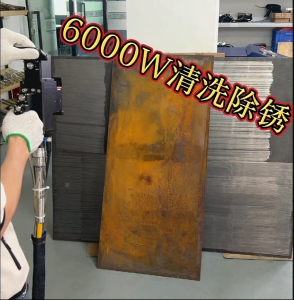

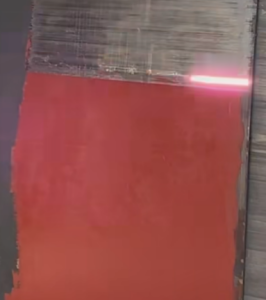

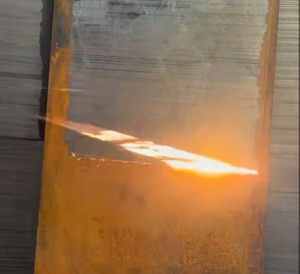

Application effect
