Description

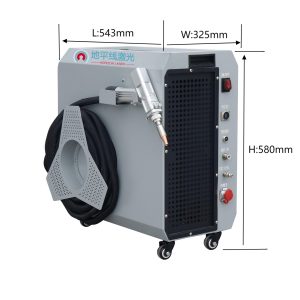

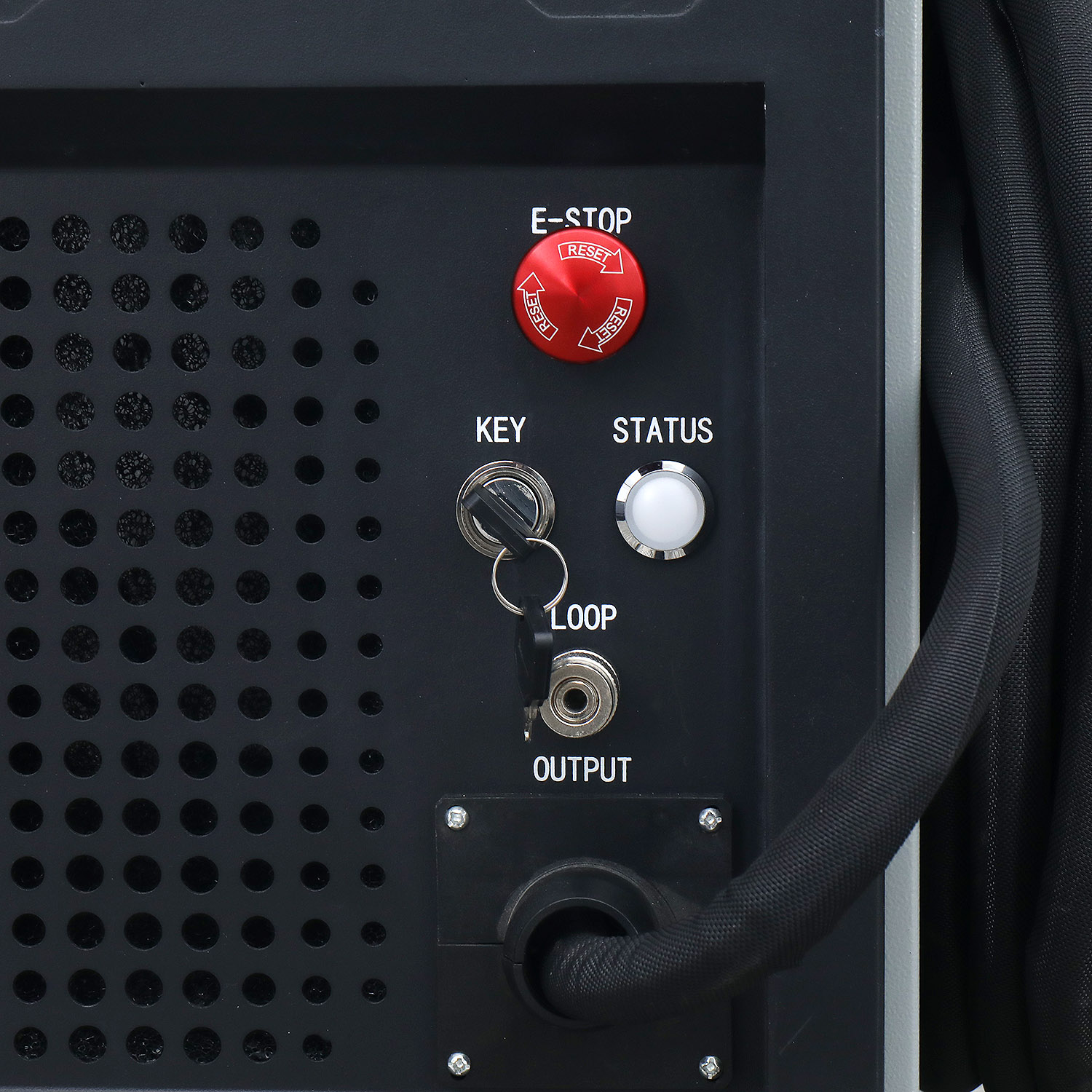

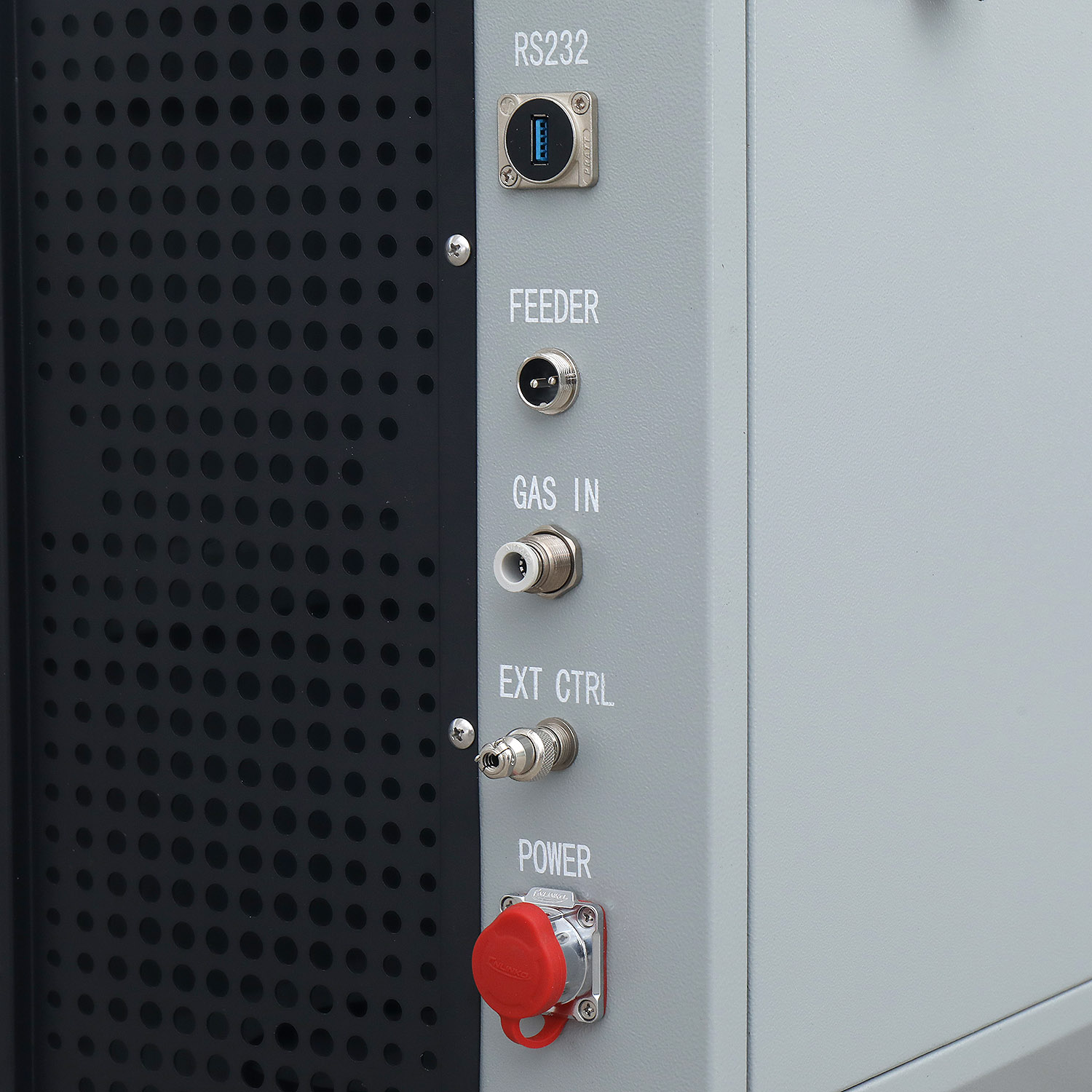

Machine Structure

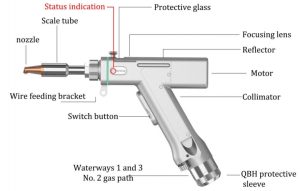

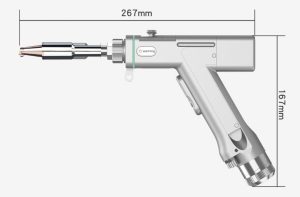

Welding Head Structure
Technical parameters
| Device model | DPX-A800 | DPX-A1200 | DPX-A1500 |
| Laser type | Continuous fiber laser (wavelength 1080±3nm) | ||
| Rated output power | 800W | 1200W | 1500W |
| cooling method | Air cooling | ||
| Power adjustment range | 10%～100% | ||
| Welding mode | Continuous welding, spot welding | ||
| Adjustable weld width | 0~6 mm | ||
| Welding gun cable length | Around 9.0m | ||
| Welding gun weight | 0.75kg | ||
| Product Size | L*W*H：543*325*580mm | ||
| Total Weight | 32kg | 32kg | 36kg |
| Machine power consumption | <2.5kw | <3.7kw | <4.6kw |
| Operating Voltage | Single phase three wire 220VAC | ||
| Working environment requirements | Temperature: 0～40℃, humidity <70% | ||
| Safety light system | Safety ground lock: Only when the welding gun touches the workpiece can the light emission be controlled; Gas detection: If the gas bottle is not opened or the gas flow is low, the software will alarm; Welding gun firing button and laser shutter, double safety light output. | ||
Product Advantages
Air-Cooling: More Energy-Efficient, Maintenance-Free,Compact Structure, Portable and Mobile
Four-in-one application: Welding, Non-Contact Cleaning,Weld Seam Cleaning, Cutting
Subvert traditiona: 4 times faster than argon arc welding
One-Pass Forming: Strong Welding, Smooth Weld Bead
Safe and Reliable: Safety Interlock, Shutter, Enable,Multiple Protection Measures
Long Lifespan: 100,000 Hours of Lifespan, Worry-Free Usage
Welding performance
| Device model | DPX-A800 | DPX-A1200 | DPX-A1500 |
| Stainless steel | ≤2.5mm | ≤3.5mm | ≤4.0mm |
| Low-carbon steel | ≤2.5mm | ≤3.5mm | ≤4.0mm |
| galvanized sheet | ≤1.5mm | ≤2.5mm | ≤3.0mm |
| Aluminum alloy | ≤1.5mm | ≤2.5mm | ≤3.0mm |
| Brass | ≤1.5mm | ≤2.5mm | ≤3.0mm |

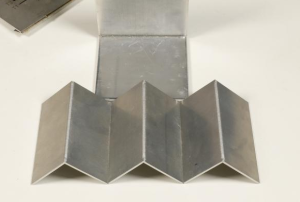

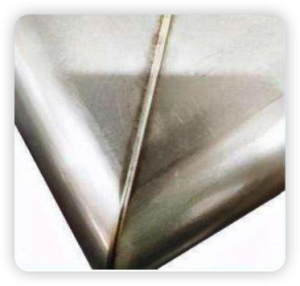

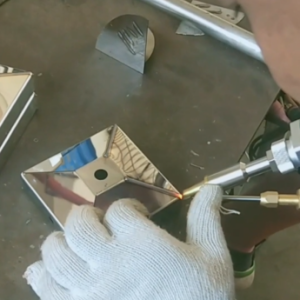

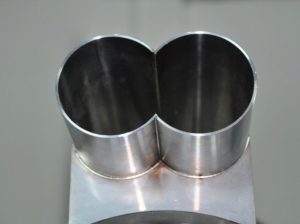

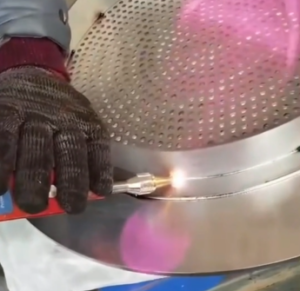

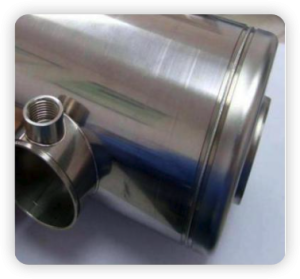

Welding samples
