Description
Advantages
- Portable structure, can be switched to use in multiple scenarios, or integrated into an automated production line.
- Use fiber laser light source, and the life span can reach 100,000 hours.
- Fiber laser marking machine has high power, which is especially suitable for metal product engraving or deep engraving. It can also take into account the engraving of non-metal products such as plastic materials.
- The equipment can be used with power, without the cost of later use such as consumables.
- The software supports PLT, DXF, AI, BMP, JPG and other formats, and supports automatic sorting of serial numbers, production dates, barcodes and QR codes.
Technical Parameters
| Model | DPX-M20/30/50/100/200 |
| Laser Wavelength | 1064 nm |
| Laser Power | 20/30/50/100/200W |
| Marking Speed | <7000 mm/s |
| Marking Area | 110 x 110 mm @F163 150 x 150 mm @F210 175 x 175 mm @F254 200 x 200 mm @F330 |
| Minimum Character Size | 0.2 mm |
| Minimum Line Width | 0.03 mm |
| Cooling Method | Air cooling |
| Rated Power Consumption | 400~1000W |
| Electrical Requirements | AC220V, 50/60Hz |
| Product Size(Portable) | L*W*H:550*550*660mm |

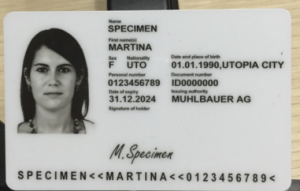

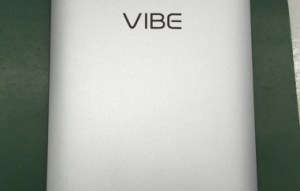

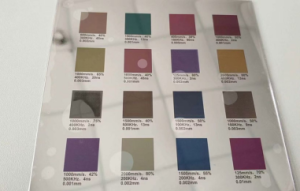

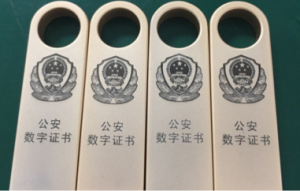

Application Cases
