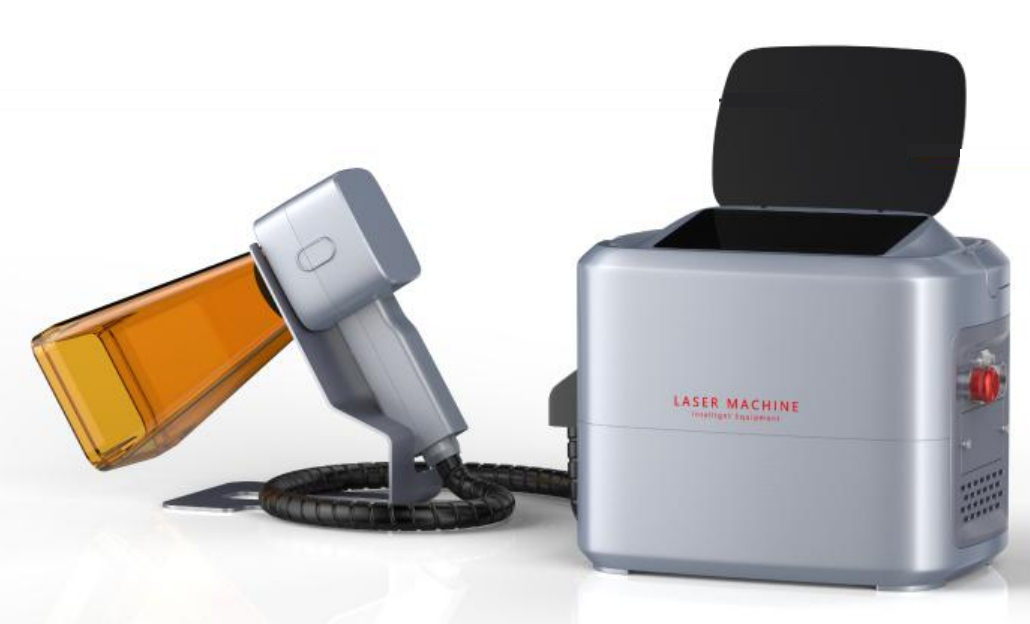

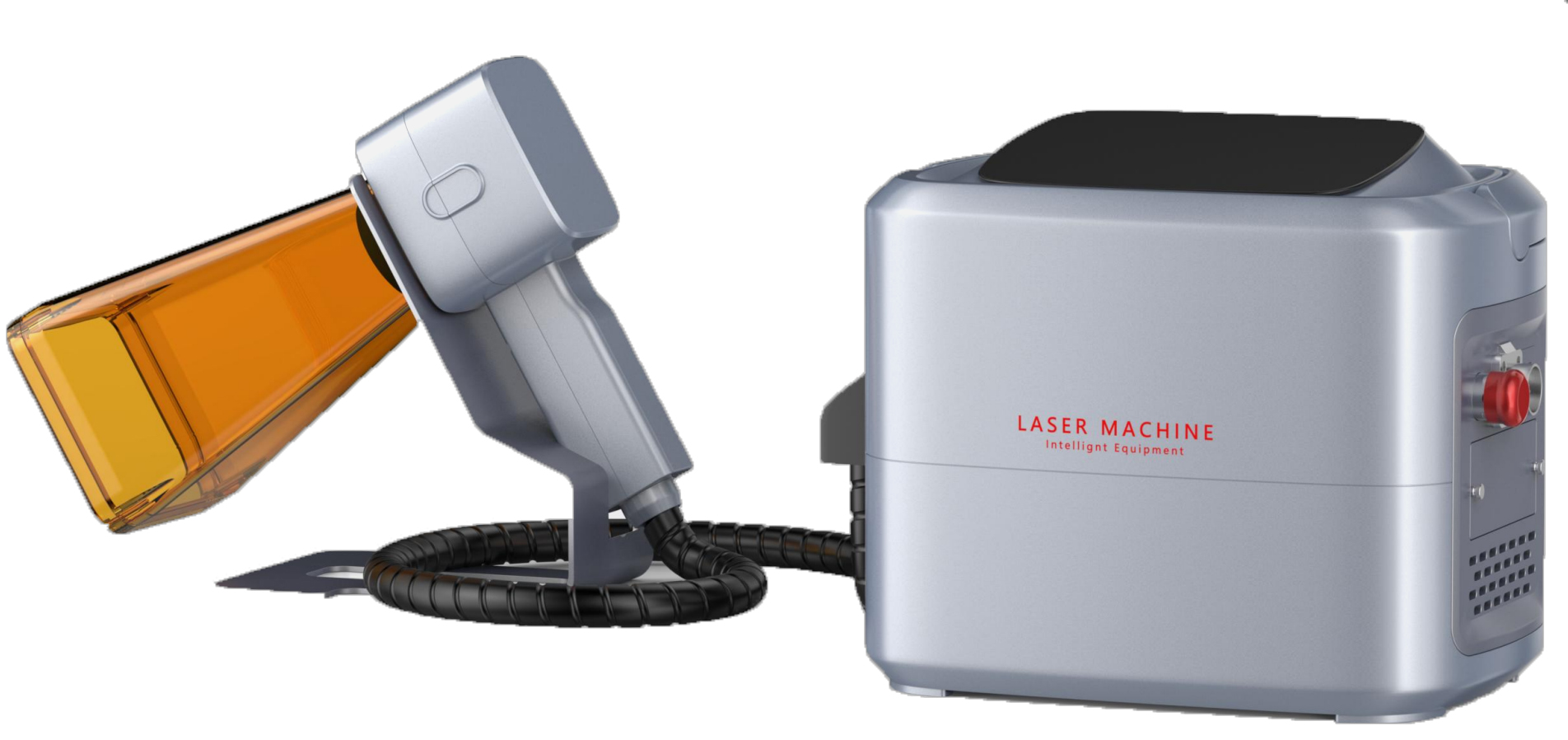

Description
Advantages
- Fixed height positioning is adopted, without adjusting the focus height.
- Can be equipped with lithium batteries without plug-in operation.
- Fiber laser marking machines have high power, especially suitable for metal product engraving or deep carving, and can also take into account non-metal product engraving such as plastic materials.
- The software supports the import of pattern formats such as PLT, DXF, BMP, JPG, etc., and supports the software interface to arrange serial numbers, production dates, barcodes and QR codes.
Technical Parameters
| Laser Power | 20/30/50W |
| Laser Wavelength | 1064 nm |
| Marking Speed | <7000 mm/s |
| Marking Area | 110 x 110 mm |
| Minimum Character Size | 0.2 mm |
| Minimum Line Width | 0.03 mm |
| Cooling Method | Air cooling |
| Rated Power Consumption | 200~300W |
| Power Voltage | AC220V, 50/60Hz |

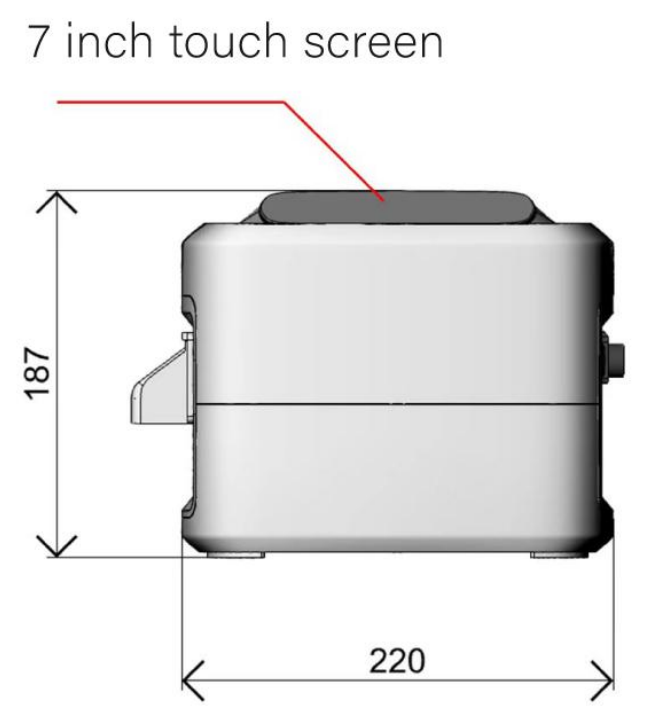

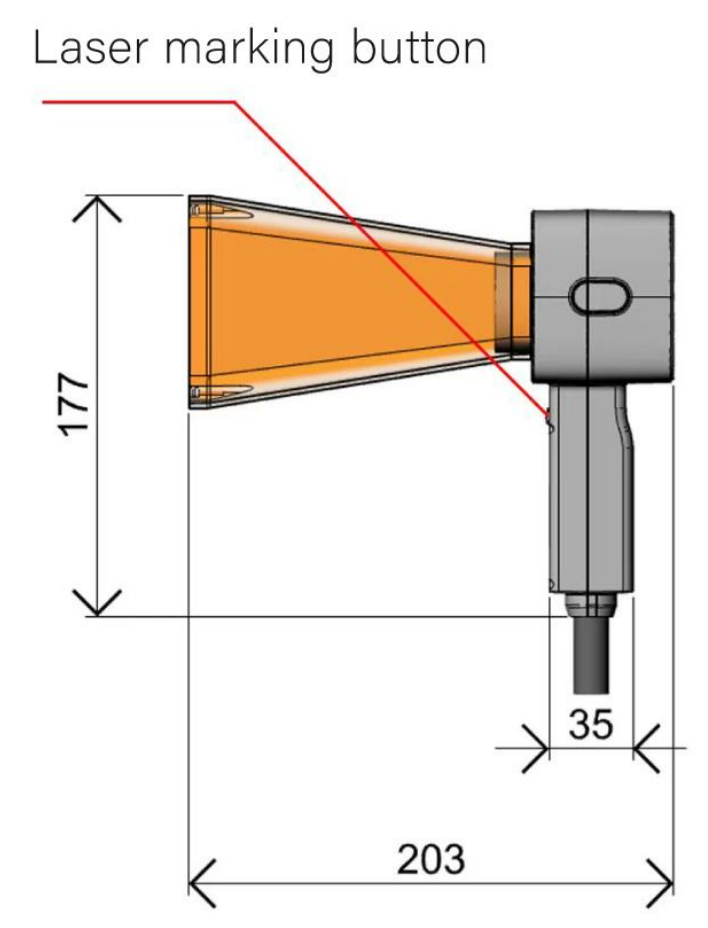

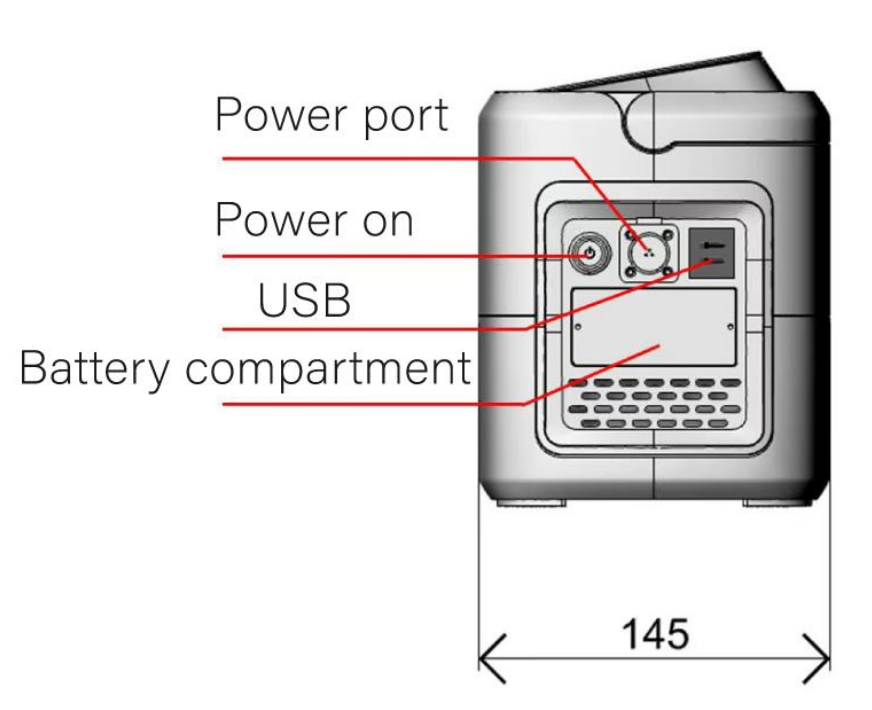

| Product Size | L*W*H:300*190*260mm |
| Product Weight | 7-10.5kg |
| Lithium Standby Time | About 12h |

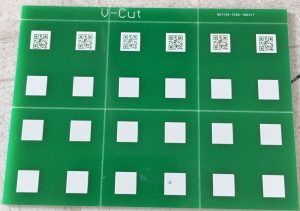

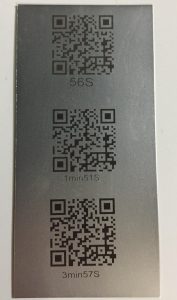

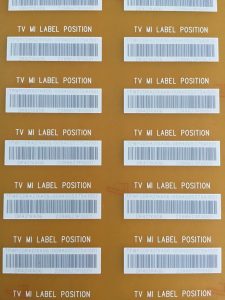

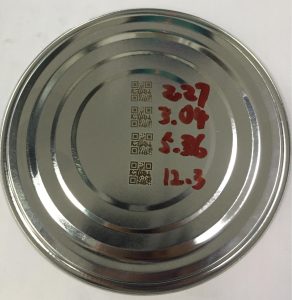

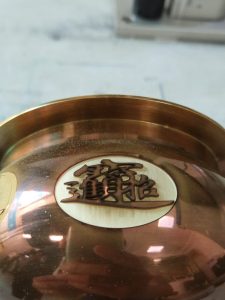

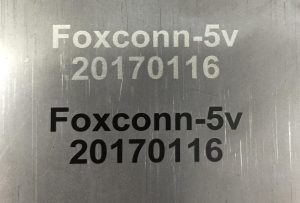

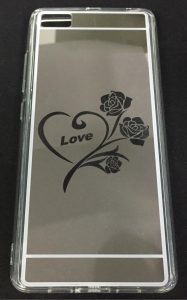

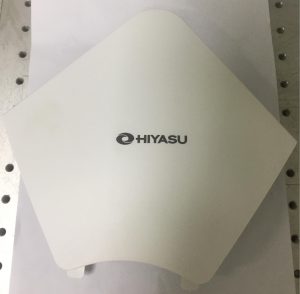

Application Cases
