Description
Features
- Welding speed is 4 times faster than argon arc welding;
- One-time welding forming, smooth welding bead, no need for grinding;
- Basically no consumables, standardized use, the protective lens can be used for several weeks;
- You can get started in 4 hours and become skilled as an professional welder in one day;
- Comes with air pressure detection alarm to avoid damage to the welding torch;
Technical Parameters
Model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Laser Source Type | CW fiber laser source（Wavelength: 1080±3nm） | ||
| Output Power | 1000W | 1500W | 2000W |
| Power Adjustment Range | 10%～100% | ||
| Welding Mode | Continuous Welding, Spot Welding | ||
| Adjustable Weld Width | 0.2～5 mm | ||
| Torch Cable Length | About 10m | ||
| Torch Weight | ＜1.2 kg | ||
| Dimensions（L*D*H） | 1000*550*700mm | 1200*600*1300mm | |
| Net Weight | 110kg | 250kg | |
| Power Consumption | <5kw | <7kw | <9.5kw |
| Operating Voltage | Single-phase 220VAC/ Three-phase 380VAC | ||
| Working Environment | Temperature：0～40℃、Humidity<70% | ||
| Safety Light Emission System | 1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece.2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 3. Welding gun firing button and laser shutter, double insurance to emit light. | ||
Welding speed is 4 times faster than argon arc welding;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Welding Performance
Recommended Welding Thickness for Different Materials | |||
| Model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Stainless Steel | ≤3.0mm | ≤4.0mm | ≤6.0mm |
| Mild Steel | ≤3.0mm | ≤4.0mm | ≤6.0mm |
| Galvanized Sheet | ≤2.0mm | ≤3.0mm | ≤5.0mm |
| Aluminum Alloy | ≤2.0mm | ≤3.0mm | ≤4.0mm |
| Brass | ≤2.0mm | ≤3.0mm | ≤4.0mm |
Note: The above is the maximum processing capacity of each model. | |||

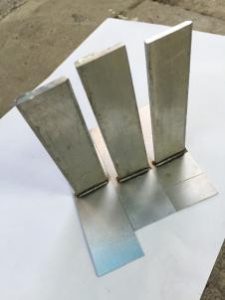

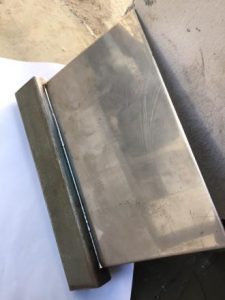

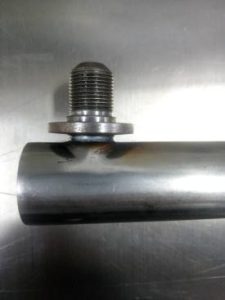

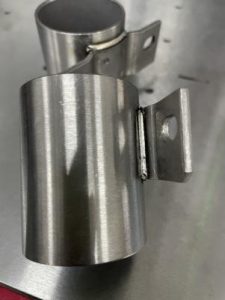

Apply effects
