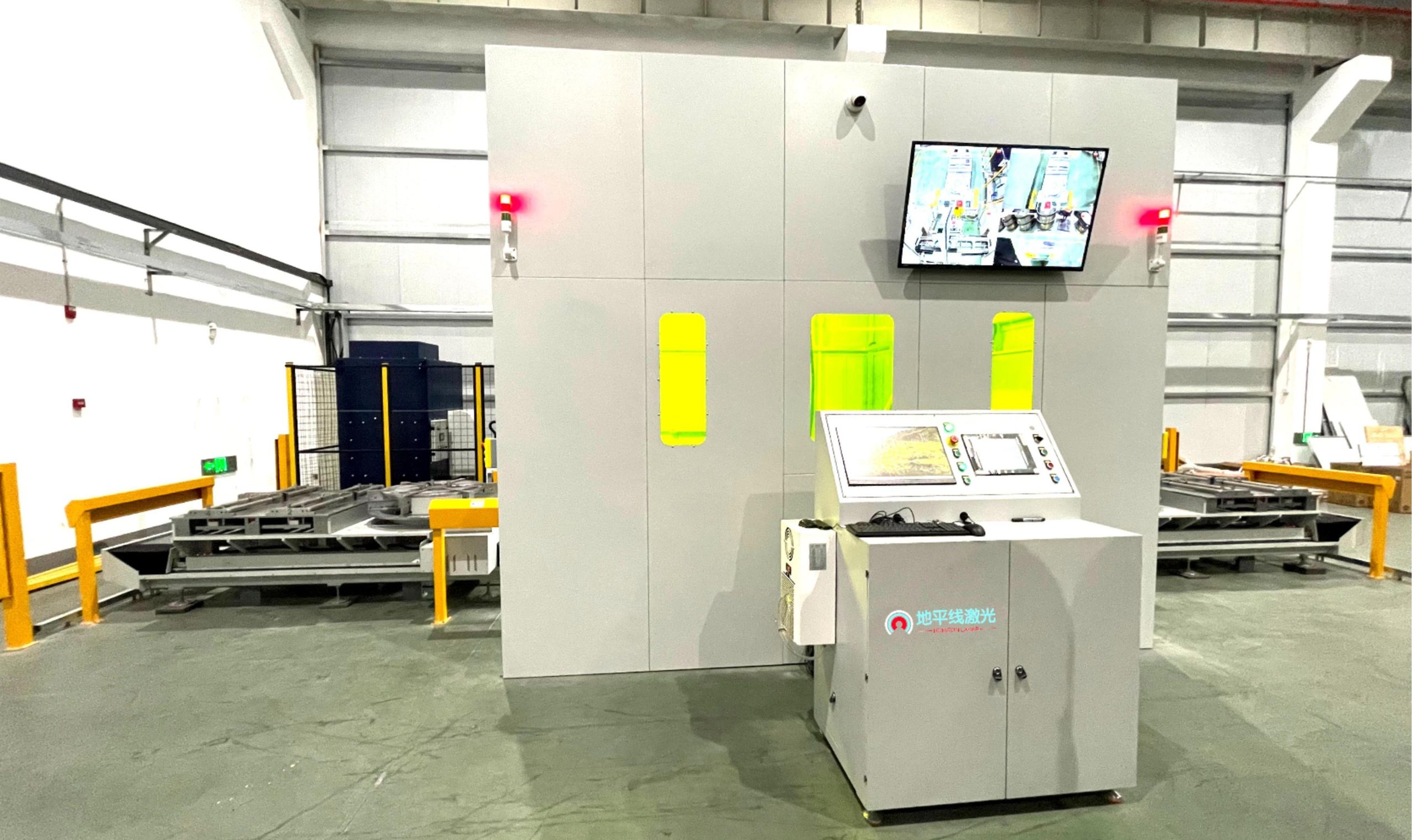

Description
Features

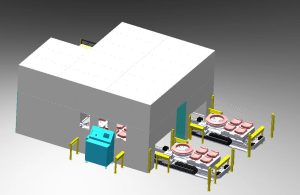

- Dual workstations (left and right) with same-side loading/unloading.
- Station 1 performs cleaning inside the chamber while Station 2 simultaneously handles loading/unloading, maximizing operational efficiency.
- One-touch start, automatic feeding, and 3D vision for capturing mold coordinates, guiding the robot-equipped laser cleaning head.
- Dust extraction system collects contaminants in the enclosed chamber, ensuring green cleaning with zero pollution.
Technical parameters
| Category | Item | Parameter |
| Electrical | Power Supply | 380V/3-phase/50Hz |
| Rated Power Consumption | 30kW | |
| Optical | Laser Wavelength | 1080nm |
| Laser Power | 1000W (optional) | |
| Cleaning Width | 240mm (optional) | |
| 3D Vision | Field of View | 460-2700mm (optional) |
| Robot | Reach | 2600mm |
| Mold Compatibility | Pattern Blocks | Compatible Size: 200-450mm |
| Sidewall Mold | Compatible Diameter: 500-1300mm | |
| Dimensions | L*W*H | 10.7*5.5*3.5m |
| Safety Protection | Light curtains, AI person detection cameras, safety fences, interlocked doors | |
Advantage

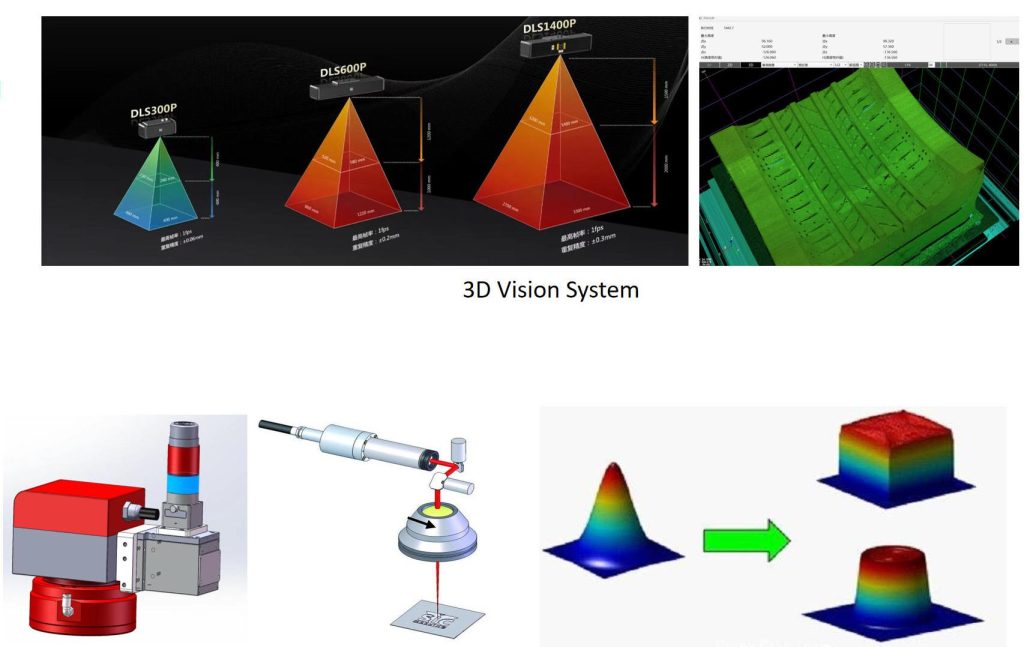

- 3D Vision System:Captures 3D images of the mold and generates customized cleaning paths, eliminating the need for tire-specific recipes.
- Laser Cleaning Head:Proprietary galvo-scanner flying cleaning algorithm, increasing cleaning speed by 30-50%.
- Laser Specifications:Flat-top laser beam profile – cleans without substrate damage.High single-pulse energy – delivers superior cleaning performance.

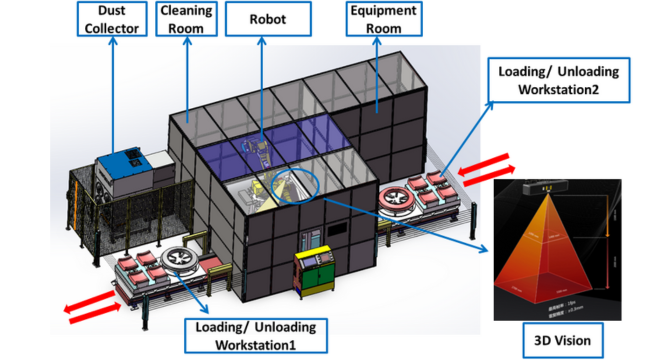

Product structure

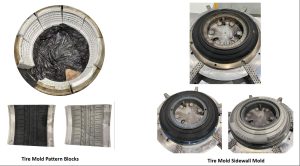

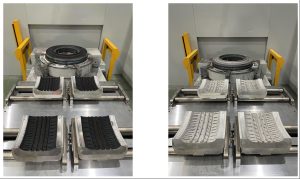

Application case
