Description
Advantages

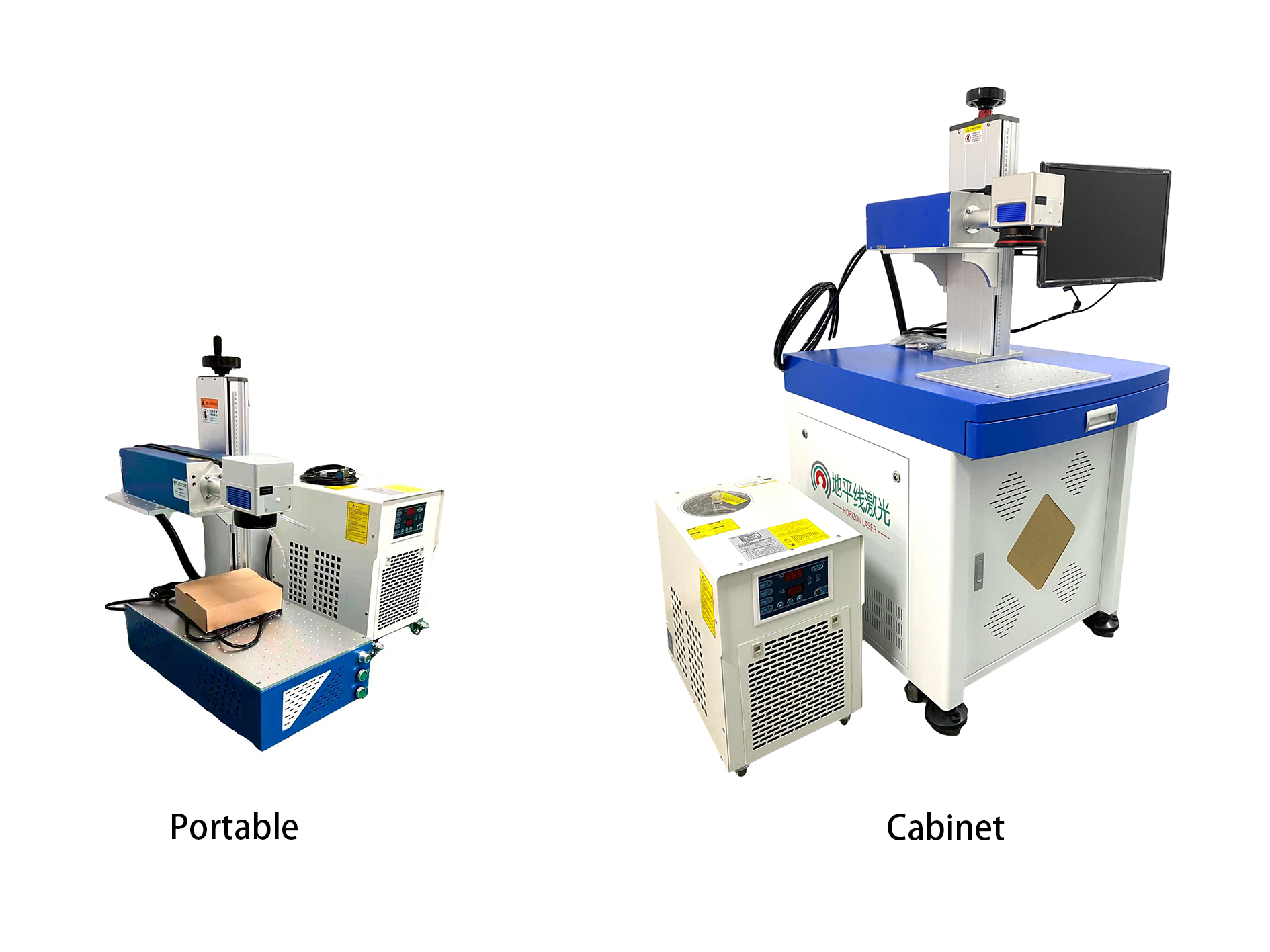

- Portable structure, can be switched to use in multiple scenarios, or integrated into an automated production line.
- Water-cooled laser source ensures stable performance and longer service life.
- UV laser is a cold light processing technology with minimal heat-affected zones, making it particularly suitable for non-metallic materials such as plastics, leather, packaging, and stone.
- The equipment can be used with power, without the cost of later use such as consumables.
- The software supports PLT, DXF, AI, BMP, JPG and other formats, and supports automatic sorting of serial numbers, production dates, barcodes and QR codes.
Technical Parameters
| Model | DPX-UV-5 | DPX-UV-10 |
| Laser Wavelength | 355 nm | 355 nm |
| Beam Quality | m2 < 1.2 | m2 < 1.2 |
| Laser Power | 5W | 10W |
| Laser Frequency | 20kHz-200kHz | 40kHz-300kHz |
| Marking Speed | <7000 mm/s | <7000 mm/s |
| Marking Area | 110 x 110 mm @F163 150 x 150 mm @F210 175 x 175 mm @F254 200 x 200 mm @F330 | 110 x 110 mm @F163 150 x 150 mm @F210 175 x 175 mm @F254 200 x 200 mm @F330 |
| Minimum Character Size | 0.2 mm | 0.2 mm |
| Minimum Line Width | 0.03 mm | 0.03 mm |
| Cooling Method | Water cooling (水冷) | Water cooling (水冷) |
| Rated Power Consumption | ≤1.2 kw | ≤1.5 kw |
| Electrical Requirements | AC220V, 50/60Hz | AC220V, 50/60Hz |
| Product Size(Portable) | L*W*H:550*550*660mm | L*W*H:550*550*660mm |

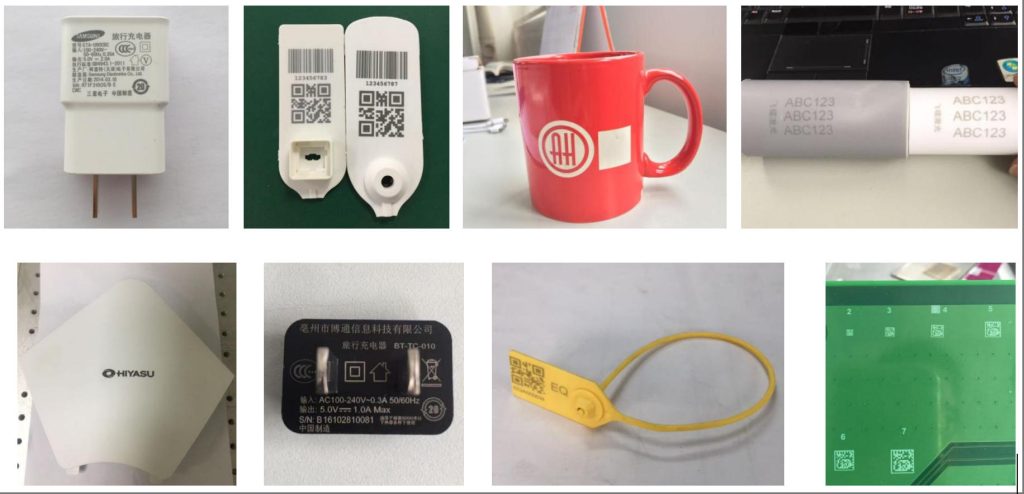

Application Cases
