Air cooled handheld laser welding machine

Short Description:

The air-cooled handheld laser welding machine is a high-power laser welding device newly launched by Horizon Laser Technology Co., Ltd. The entire machine adopts an air-cooled structure, with a compact size and easy mobility, meeting the needs of more application scenarios. The handheld mode facilitates the welding of products such as boilers, cabinets, doors, windows, and advertising signs, making laser welding possible for outdoor operations. It is set to replace most applications of traditional electric welding and argon arc welding. The air-cooled handheld laser welding machine integrates an air-cooled laser, handheld welding gun, wire feeder, laser control system, and safety light emission system into one unit. It can stably and continuously emit light for welding, enabling butt welding, lap welding, seal welding, seam welding, and spot welding of products.

Product Detail

Product Tags

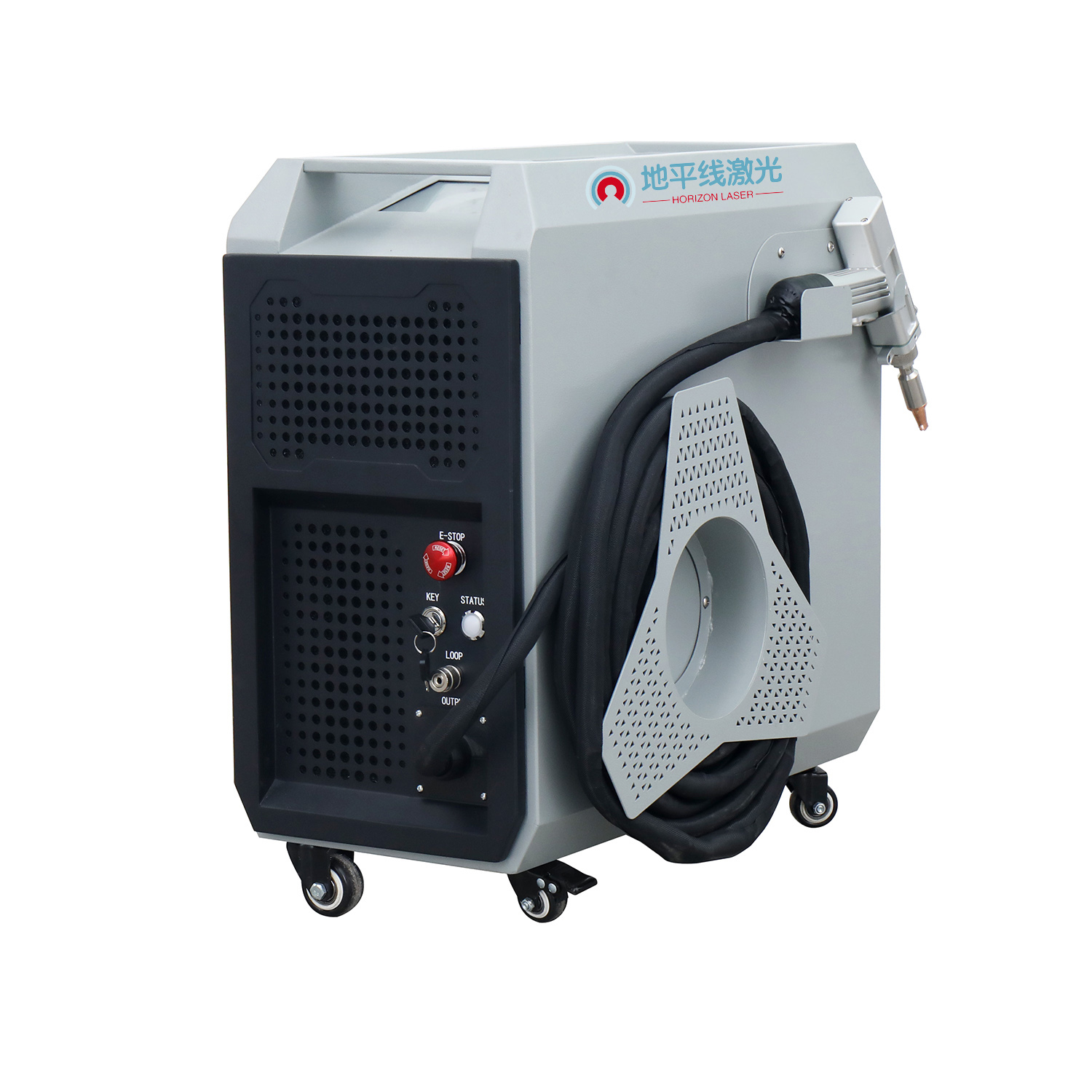

Machine Structure

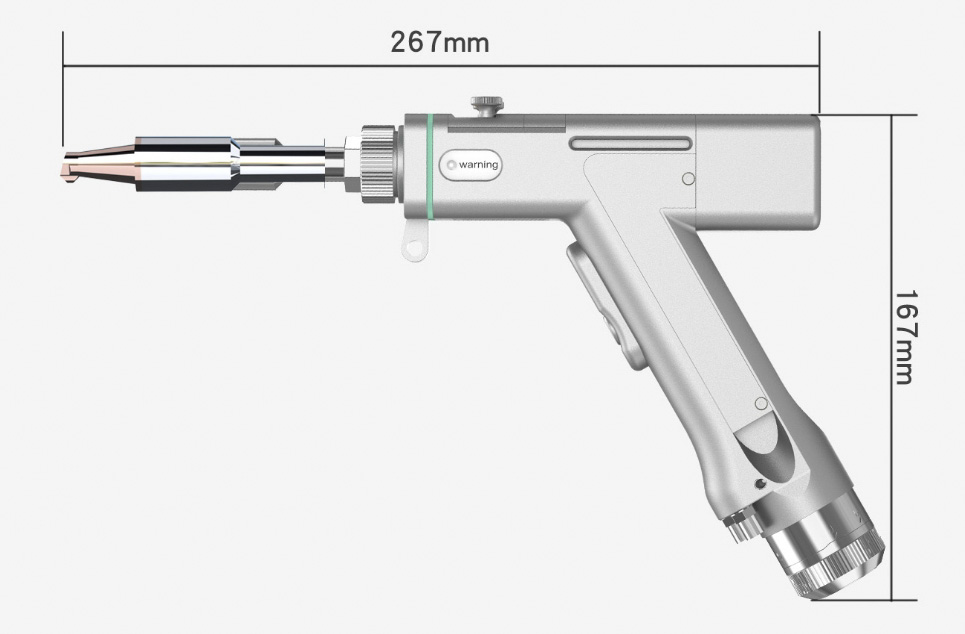

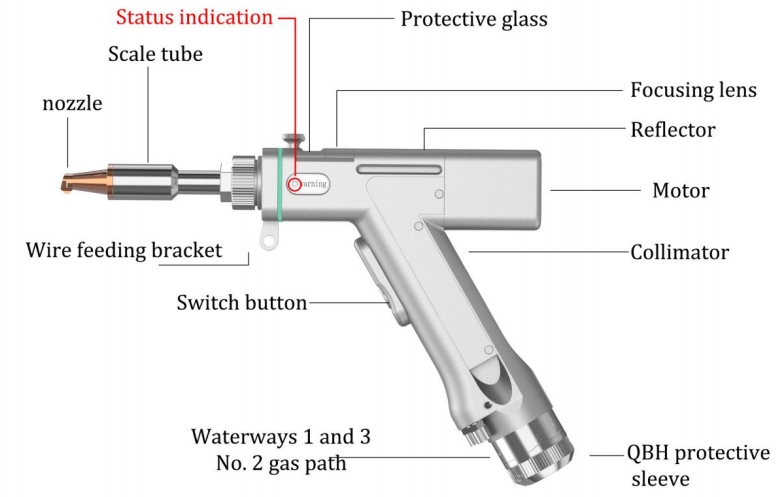

Welding Head Structure



Technical parameters

Device model

DPX-A800

DPX-A1200

DPX-A1500

Laser type

Continuous fiber laser (wavelength 1080±3nm)

Rated output power

800W

1200W

1500W

cooling method

Air cooling

Power adjustment range

10%100%

Welding mode

Continuous welding, spot welding

Adjustable weld width

0~6 mm

Welding gun cable length

Around 9.0m

Welding gun weight

0.75kg

Product Size

L*W*H543*325*580mm

Total Weight

32kg

32kg

36kg

Machine power consumption

<2.5kw

<3.7kw

<4.6kw

Operating Voltage

Single phase three wire 220VAC

Working environment requirements

Temperature: 040, humidity <70%

Safety light system

Safety ground lock: Only when the welding gun touches the workpiece can the light emission be controlled;

Gas detection: If the gas bottle is not opened or the gas flow is low, the software will alarm;

Welding gun firing button and laser shutter, double safety light output.

Product Advantages

Air-Cooling:More Energy-Efficient, Maintenance-Free,Compact Structure, Portable and Mobile

Four-in-one application:Welding, Non-Contact Cleaning,Weld Seam Cleaning, Cutting
Subvert traditiona:4 times faster than argon arc welding

One-Pass Forming:Strong Welding, Smooth Weld Bead

Safe and Reliable:Safety Interlock, Shutter, Enable,Multiple Protection Measures
Long Lifespan:100,000 Hours of Lifespan, Worry-Free Usage

Welding performance

Device model

DPX-A800

DPX-A1200

DPX-A1500

Stainless steel

≤2.5mm

≤3.5mm

≤4.0mm

Low-carbon steel

≤2.5mm

≤3.5mm

≤4.0mm

galvanized sheet

≤1.5mm

≤2.5mm

≤3.0mm

Aluminum alloy

≤1.5mm

≤2.5mm

≤3.0mm

Brass

≤1.5mm

≤2.5mm

≤3.0mm

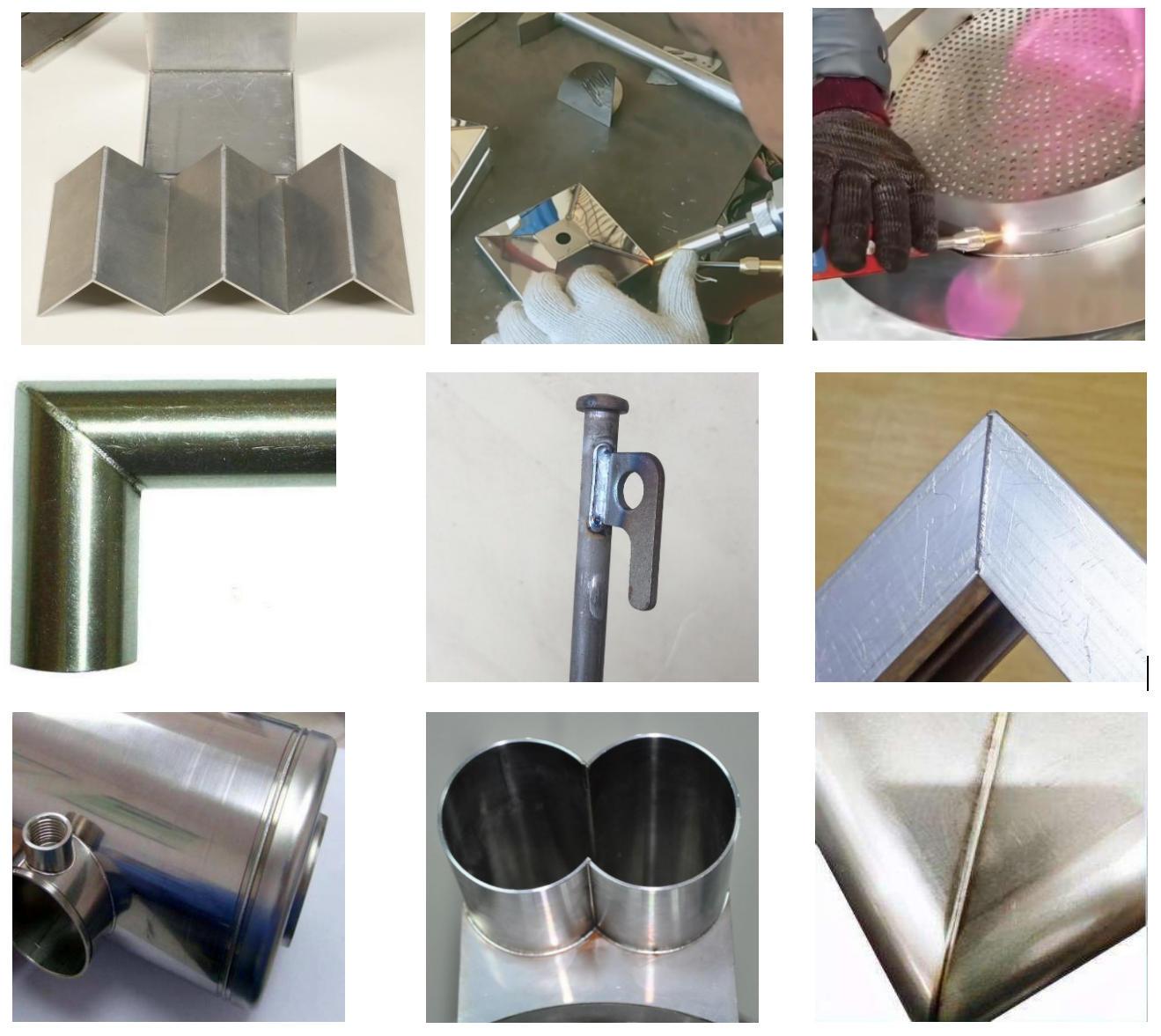

Welding samples
