Exchange table laser cutting machine 1000-30000W

Short Description:

Exchange table laser cutting machine comes with high processing efficiency. It adopts imported servo double-drive rack and pinion structure, parallel interactive worktables, and fully enclosed sheet metal outer protection. It is a laser cutting machine with superior performance and high-efficiency processing. Suitable for external processing or exclusive industry customer groups (aluminum sheet).

Product Detail

Product Tags

Features

One-click platform exchange, saving time and energy.
Double table design, cutting and loading & unloading can be carried out at the same time, ensuring uninterrupted processing all day long.
Full-enclosed protection and segmented follow-up dust removal design create a clean and friendly processing environment.
The high-strength bed combined with high-precision dynamic performance is specially designed for high-speed batch cutting of medium and thin plates.

High-power (12000W-30000W)

Technical Parameters

Laser power 12000-30000W
Model DPX-J6025 DPX-J8025 DPX-J10025 DPX-J12025
Cutting range 6000 × 2500mm 8000 × 2500mm 10000 × 2500mm 12000 × 2500mm
Cutting focus method Auto focus
Machine running accuracy Acceleration: 1.8G
Maximum speed: 150m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

material 12000W cutting performance 15000W cutting performance 20000W cutting performance
carbon steel stable cutting ≤ 35mm stable cutting ≤ 40mm stable cutting ≤ 45mm
Limit cut 50mm Limit cut 60mm Limit cut 70mm
Stainless steel stable cutting ≤ 30mm stable cutting ≤ 35mm stable cutting ≤ 40mm
Limit cut 50mm Limit cut 70mm Limit cut 80mm

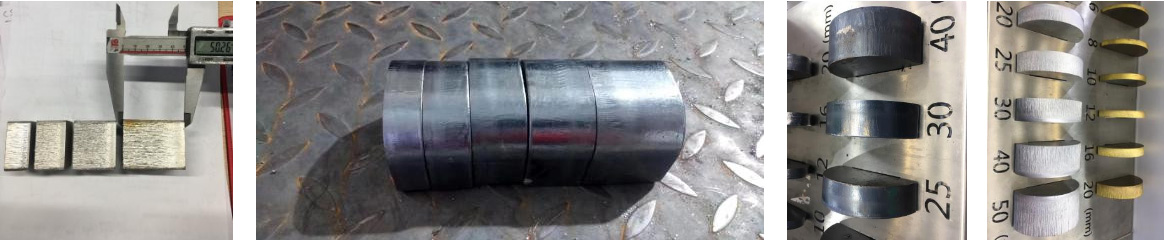

Application effect



Medium power (3000W-6000W)

Technical Parameters

Laser power 3000-6000W
Model DPX-J3015 DPX-J4020 DPX-J6025 DPX-J8025
Cutting range 3000 × 1500mm 4000 × 2000mm 6000 × 2500mm 8000 × 2500mm
Cutting focus method Auto focus
Machine running accuracy Acceleration: 1.2G
Maximum speed: 100m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

material 3000W cutting performance 4000W cutting performance 6000W cutting performance
carbon steel stable cutting ≤ 20mm stable cutting ≤ 22mm stable cutting ≤ 25mm
Limit cut 25mm Limit cut 25mm Limit cut 30mm
Stainless steel stable cutting ≤ 9mm stable cutting ≤ 10mm stable cutting ≤ 14mm
Limit cut 12mm Limit cut 14mm Limit cut 20mm

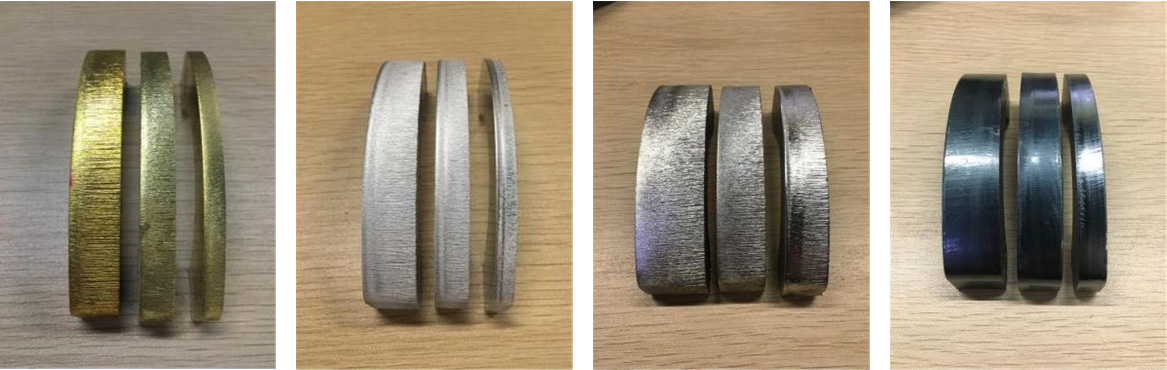

Application effect



Low power ( 1000-2000W )

Technical Parameters

Laser power 1000-2000W
Model DPX-J3015 DPX-J4020 DPX-J6025
Cutting range 3000 × 1500mm 4000 × 2000mm 6000 × 2500mm
Cutting and focusing method Manual / automatic focusing
Machine running accuracy Acceleration: 1.0G
Maximum speed: 80m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

Material 1000W cutting performance 1500W cutting performance 2000W cutting performance
Carbon steel stable cutting ≤ 8mm stable cutting ≤ 12mm stable cutting ≤ 16mm
Limit cut 12mm Limit cut 16mm Limit cut 20mm
Stainless steel stable cutting ≤ 4mm stable cutting ≤ 6mm stable cutting ≤ 7mm
Limit cut 6mm Limit cut 8mm Limit cut 10mm

Application effect
