Handheld laser welding machine

Short Description:

The hand-held laser welding machine features a compact structure and easy mobility, catering to a wider range of application scenarios. Its handheld mode facilitates the welding of products such as boilers, cabinets, doors, windows, and advertising characters, making laser welding possible for outdoor operations. It is set to replace the majority of applications traditionally served by electric welding and argon arc welding. The complete set of the handheld laser welding equipment mainly integrates a fiber laser, a handheld welding gun, chiller,a wire feeder, a laser control system, and a safe light emission system into one unit. It can deliver stable and uninterrupted light emission for welding, enabling butt welding, lap welding, seal welding, seam welding, and spot welding of products.

Product Detail

Product Tags

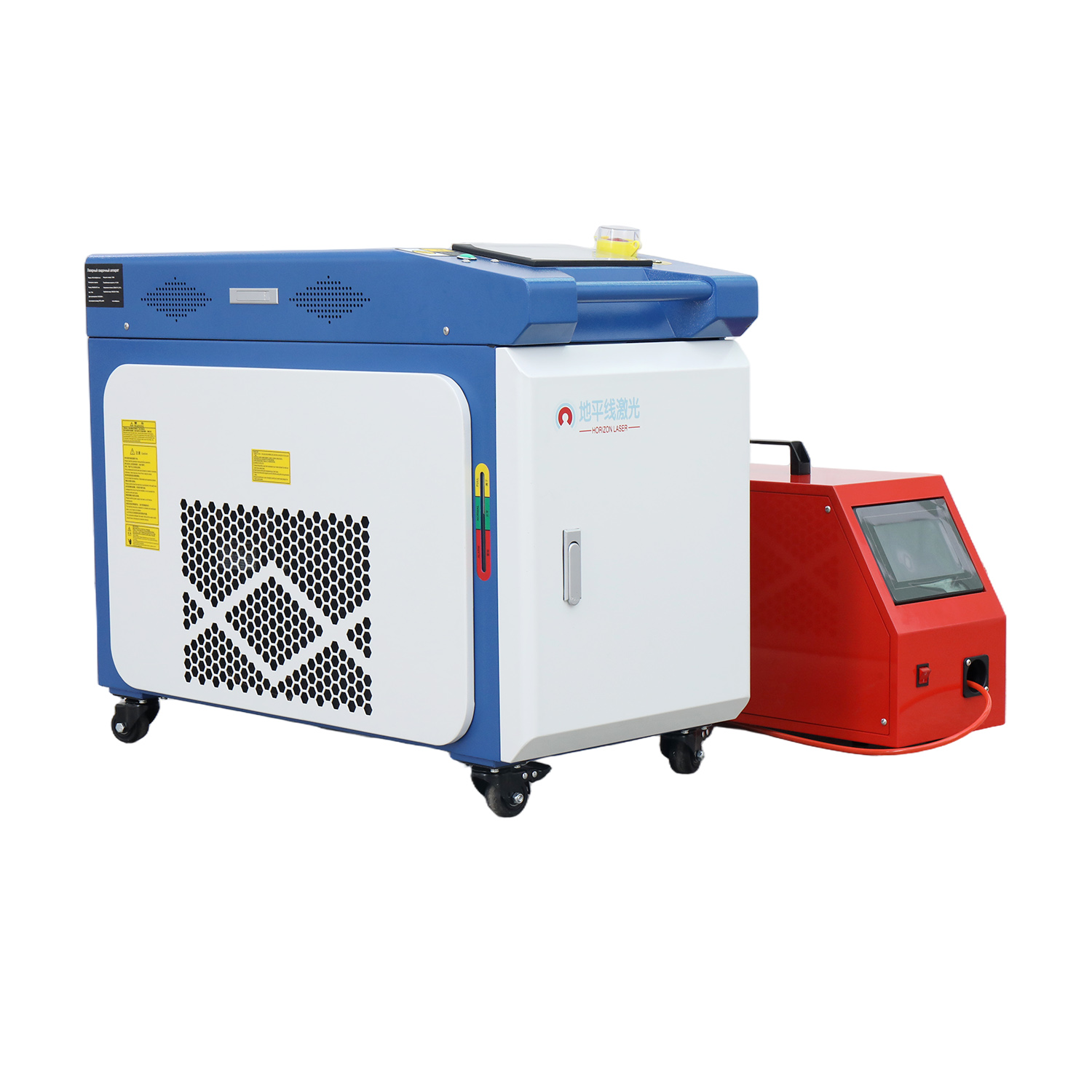

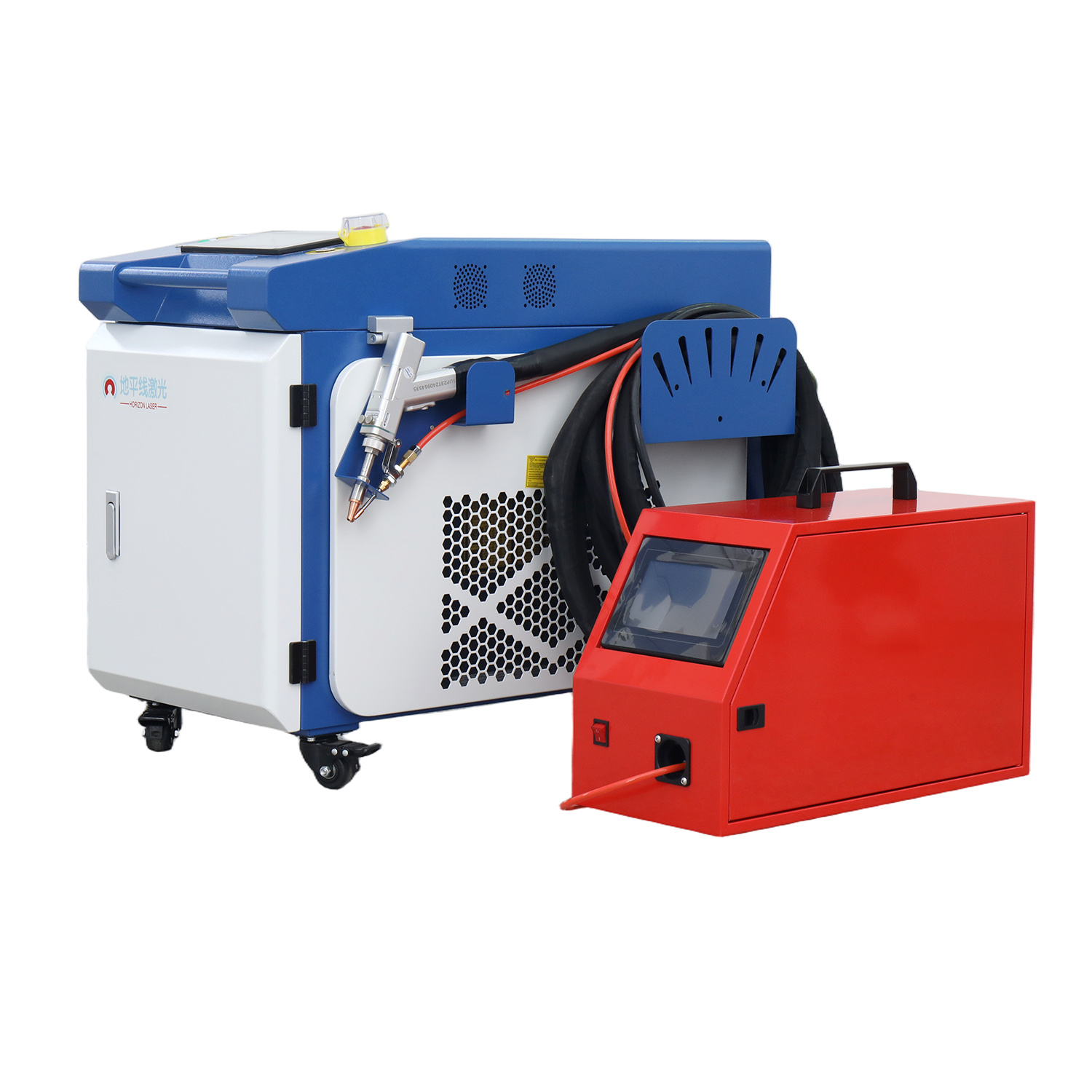

Machine Structure

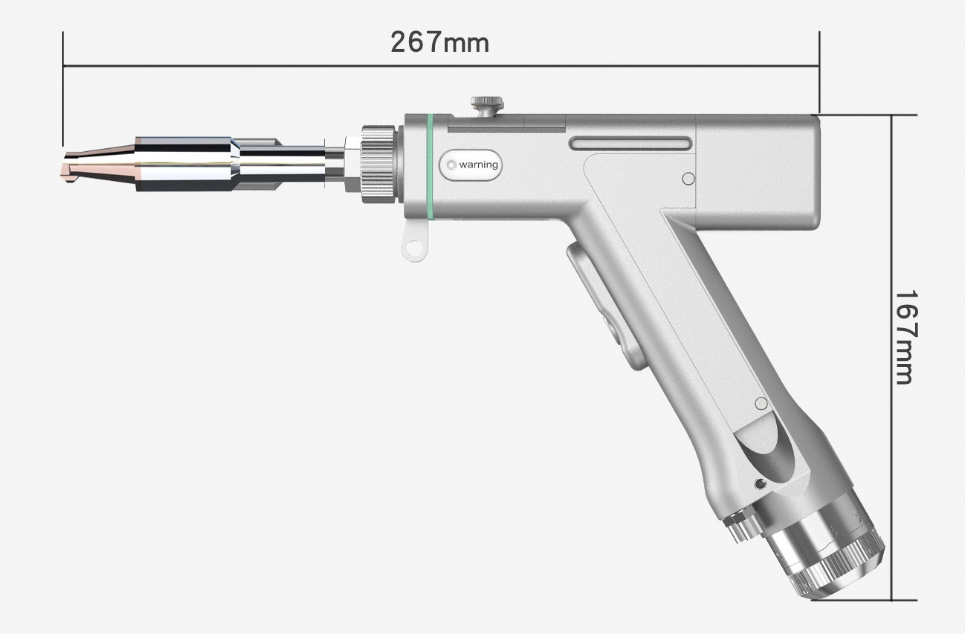

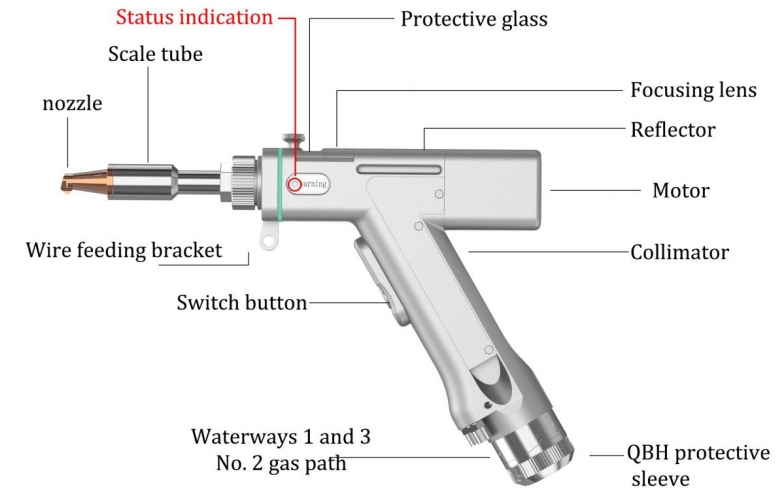

Welding Head Structure



Technical Parameters

Device model

DPX-W1500

DPX-W2000

DPX-W3000

Laser type

Continuous fiber laser (wavelength 1080±3nm)

Rated output power

1500W

2000W

3000W

Cooling method

Water cooling

Power adjustment range

10%100%

Welding mode

Continuous welding, spot welding

Adjustable weld width

0~6 mm

Welding gun cable length

Around 9.0m

Welding gun weight

0.75kg

Product Size

L*W*H980*550*720mm

L*W*H:990*675*940mm

Total Weight

98kg

103kg

128kg

Machine power consumption

<6.7kw

<8.4kw

<13kw

Operating Voltage

Single phase three wire 220VAC

Three-phase five-wire 380VAC

Working environment requirements

Temperature: 040, humidity <70%

Safety light system

Safety ground lock: Only when the welding gun touches the workpiece can the light emission be controlled;

Gas detection: If the gas bottle is not opened or the gas flow is low, the software will alarm;

Welding gun firing button and laser shutter, double safety light output.

Product Advantages

Subvert traditiona:Welding speed is 4 times faster than argon arc welding;

Four-in-one application:Welding, Non-Contact Cleaning,Weld Seam Cleaning, Cutting

One-Pass Forming:Strong Welding, Smooth Weld Bead

Energy-saving:Low power consumption, virtually no consumables required

Long Lifespan:100,000 Hours of Lifespan, Worry-Free Usage

Safe and Reliable:Safety Interlock, Shutter, Enable,Multiple Protection Measures

You can get started in 4 hours and become skilled as an professional welder in one day

Welding Performance

Device model

DPX-W1500

DPX-W2000

DPX-W3000

Stainless steel

≤4.0mm

≤6.0mm

8.0mm

Low-carbon steel

≤4.0mm

≤6.0mm

8.0mm

galvanized sheet

≤3.0mm

≤5.0mm

6.0mm

Aluminum alloy

≤3.0mm

≤4.0mm

5.0mm

Brass

≤3.0mm

≤4.0mm

5.0mm

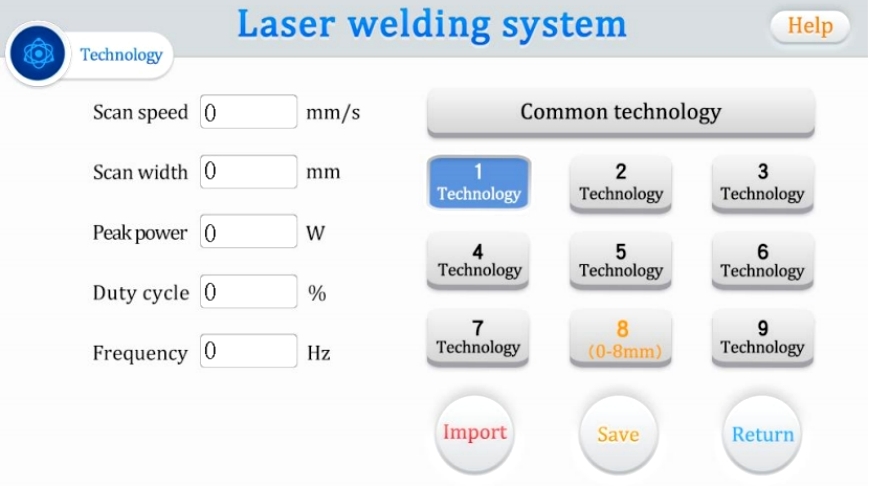

Operation Panel

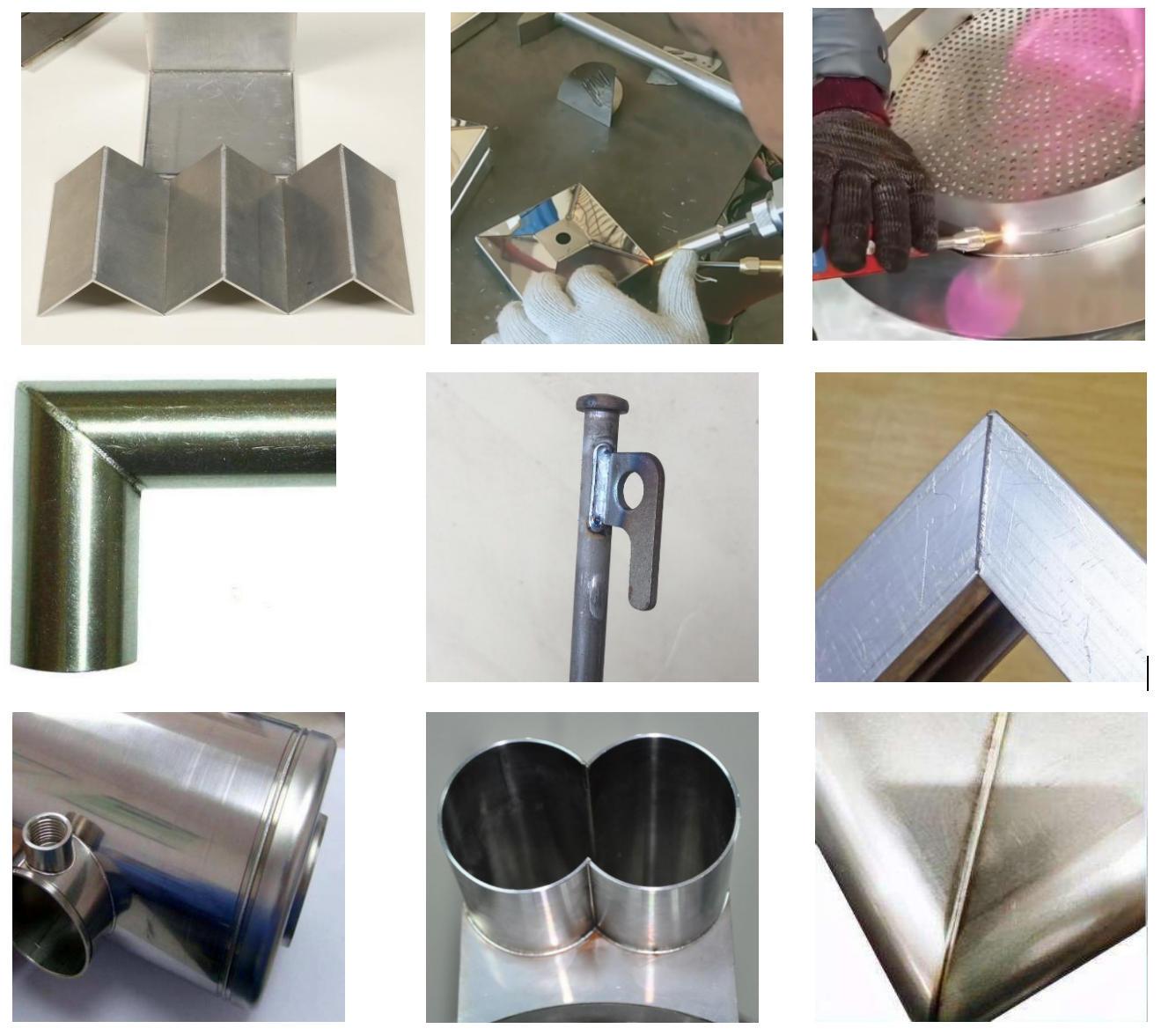

Welding Samples
