Fiber Laser Marking Machine

Short Description:

Laser marking machines use laser beams to mark permanent patterns, trademarks and characters on the surface of various materials. Laser marking machines are mainly divided into fiber laser marking machines, UV/green laser marking machines, and CO2 laser marking machines etc. Widely used in the industry of electronic components, electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, auto parts, plastic buttons, building materials, PVC pipes. Fiber laser marking machines use laser beams to act on product surfaces of different materials, marking out characters, patterns, QR codes and other contents without consumables. Fiber laser marking machine has high power and is most suitable for surface engraving of metal components, hardware products, 3C products, deep engraving, and can also mark surface engraving of plastic non-metal products. Horizon Laser mainly produce 20W/30W/50W/100W desktop, portable, mini and hand-held fiber laser marking machines.

Product Detail

Product Tags

Product Advantages


  • Portable structure, can be switched to use in multiple scenarios, or integrated into an automated production line.
  • Use fiber laser light source, and the life span can reach 100,000 hours.
  • Fiber laser marking machine has high power, which is especially suitable for metal product engraving or deep engraving. It can also take into account the engraving of non-metal products such as plastic materials.
  • The equipment can be used with power, without the cost of later use such as consumables.
  • The software supports PLT, DXF, AI, BMP, JPG and other formats, and supports automatic sorting of serial numbers, production dates, barcodes and QR codes.


Technical Parameters


Model

DPX-M20/30/50/100/200

Laser Wavelength

1064 nm

Laser Power

20/30/50/100/200W

Marking Speed

<7000 mm/s

Marking Area

110 x 110 mm @F163

150 x 150 mm @F210

175 x 175 mm @F254

200 x 200 mm @F330

Minimum Character Size

0.2 mm

Minimum Line Width

0.03 mm

Cooling Method

Air cooling

Rated Power Consumption

400~1000W

Electrical Requirements

AC220V, 50/60Hz

Product Size(Portable)

L*W*H:550*550*660mm

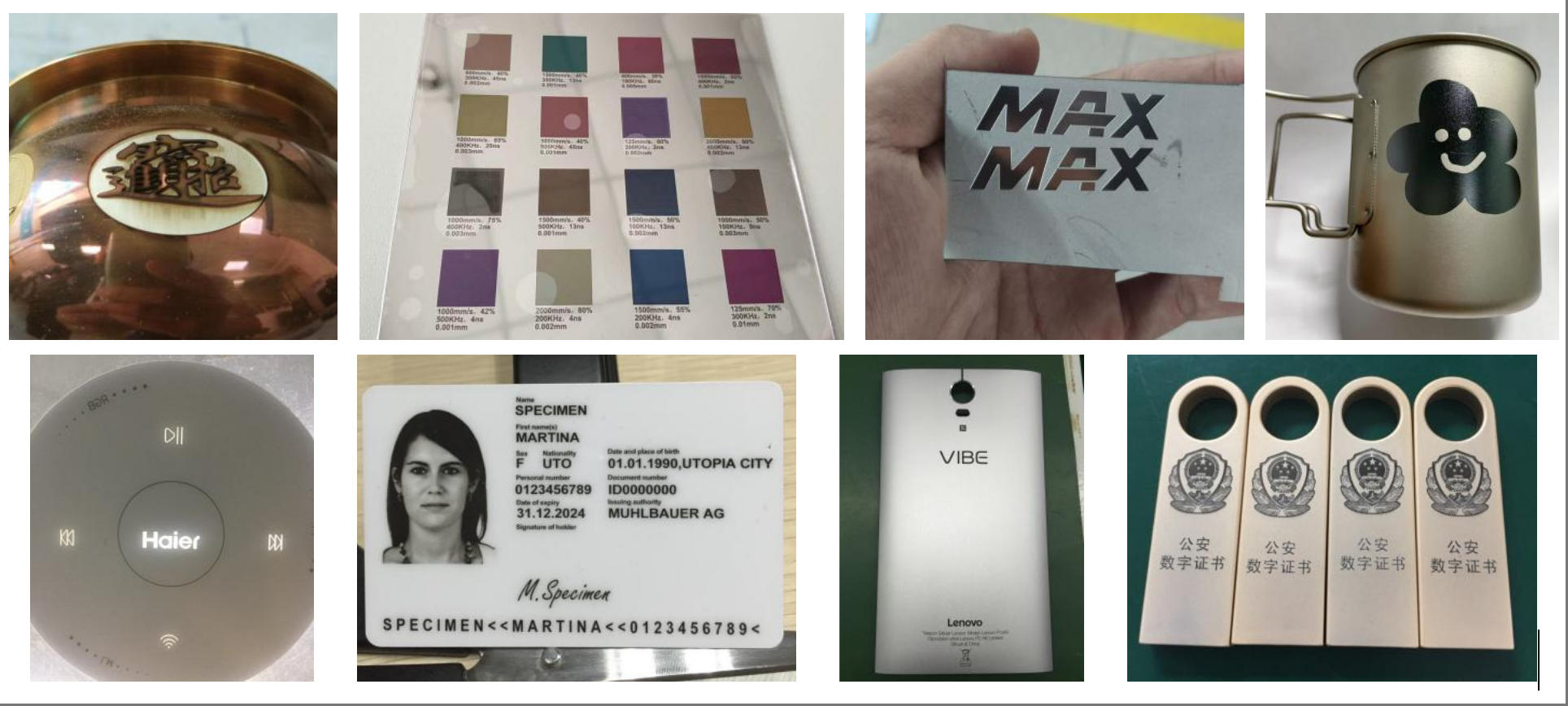

Application Cases
