UV Laser Marking Machine

Short Description:

The laser marking machine uses a laser beam to engrave characters, patterns, QR codes, and other content on the surfaces of various materials without the need for consumables. The UV laser marking machine employs cold light processing, making it ideal for engraving on plastic products such as ABS, PP, and wires. It is also suitable for marking on surfaces like stone, jade, metal components, and hardware products.

Product Detail

Product Tags

Product Advantages


  • Portable structure, can be switched to use in multiple scenarios, or integrated into an automated production line.
  • Water-cooled laser source ensures stable performance and longer service life.
  • UV laser is a cold light processing technology with minimal heat-affected zones, making it particularly suitable for non-metallic materials such as plastics, leather, packaging, and stone.
  • The equipment can be used with power, without the cost of later use such as consumables.
  • The software supports PLT, DXF, AI, BMP, JPG and other formats, and supports automatic sorting of serial numbers, production dates, barcodes and QR codes.

Technical Parameters


Model

DPX-UV-5

DPX-UV-10

Laser Wavelength

355 nm

355 nm

Beam Quality

m2 < 1.2

m2 < 1.2

Laser Power

5W

10W

Laser Frequency

20kHz-200kHz

40kHz-300kHz

Marking Speed

<7000 mm/s

<7000 mm/s

Marking Area

110 x 110 mm @F163

150 x 150 mm @F210

175 x 175 mm @F254

200 x 200 mm @F330

110 x 110 mm @F163

150 x 150 mm @F210

175 x 175 mm @F254

200 x 200 mm @F330

Minimum Character Size

0.2 mm

0.2 mm

Minimum Line Width

0.03 mm

0.03 mm

Cooling Method

Water cooling (水冷)

Water cooling (水冷)

Rated Power Consumption

≤1.2 kw

≤1.5 kw

Electrical Requirements

AC220V, 50/60Hz

AC220V, 50/60Hz

Product Size(Portable)

L*W*H:550*550*660mm

L*W*H:550*550*660mm

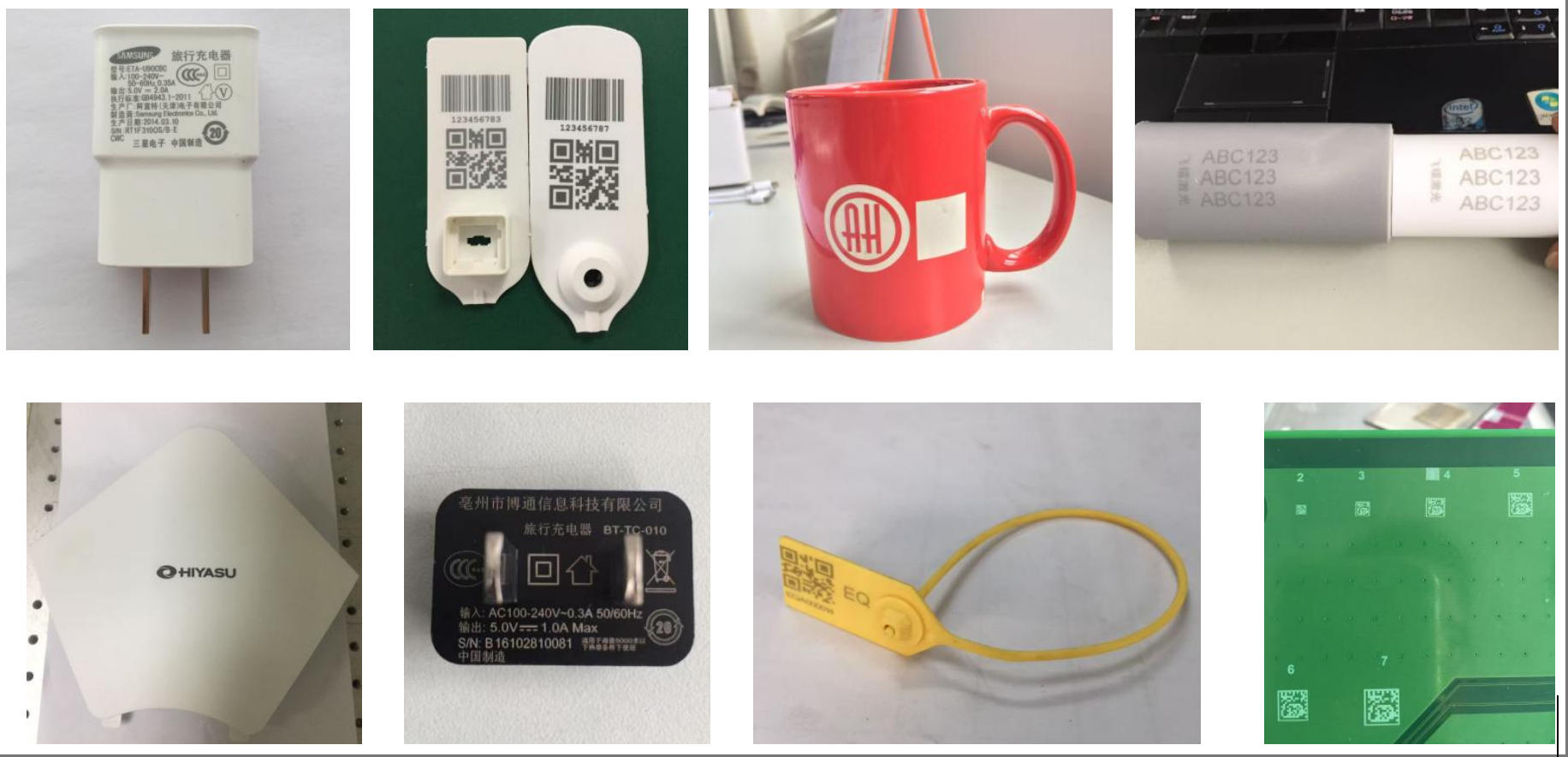

Application Cases
