500W Pulse Laser Cleaning Machine

Short Description:

The pulsed laser cleaning machine utilizes a laser specifically designed for cleaning, enabling non-contact cleaning operations. The laser is transmitted through an optical fiber and paired with a handheld cleaning head, allowing for flexible and oscillating cleaning. The handheld cleaning head can also be integrated with automated production lines, facilitating efficient and large-scale cleaning and refurbishment of products. The pulsed laser cleaning machine features a cleaning head with a dual oscillating mirror structure, delivering high peak laser power, substantial single-pulse energy, and uniform beam energy distribution. Compared to traditional cleaning methods such as dry ice, chemical etching, and sandblasting, it offers advantages such as no damage to the product substrate, minimal heat input, no consumables, and no pollution. It can effectively remove rust, coatings, rubber, paint, resin, oil stains, and other contaminants from product surfaces. This machine is primarily used in industries such as mold manufacturing, mechanical component refurbishment, rail transportation, shipbuilding, petrochemical pipelines, automotive manufacturing, and cultural heritage restoration.

Product Detail

Product Tags

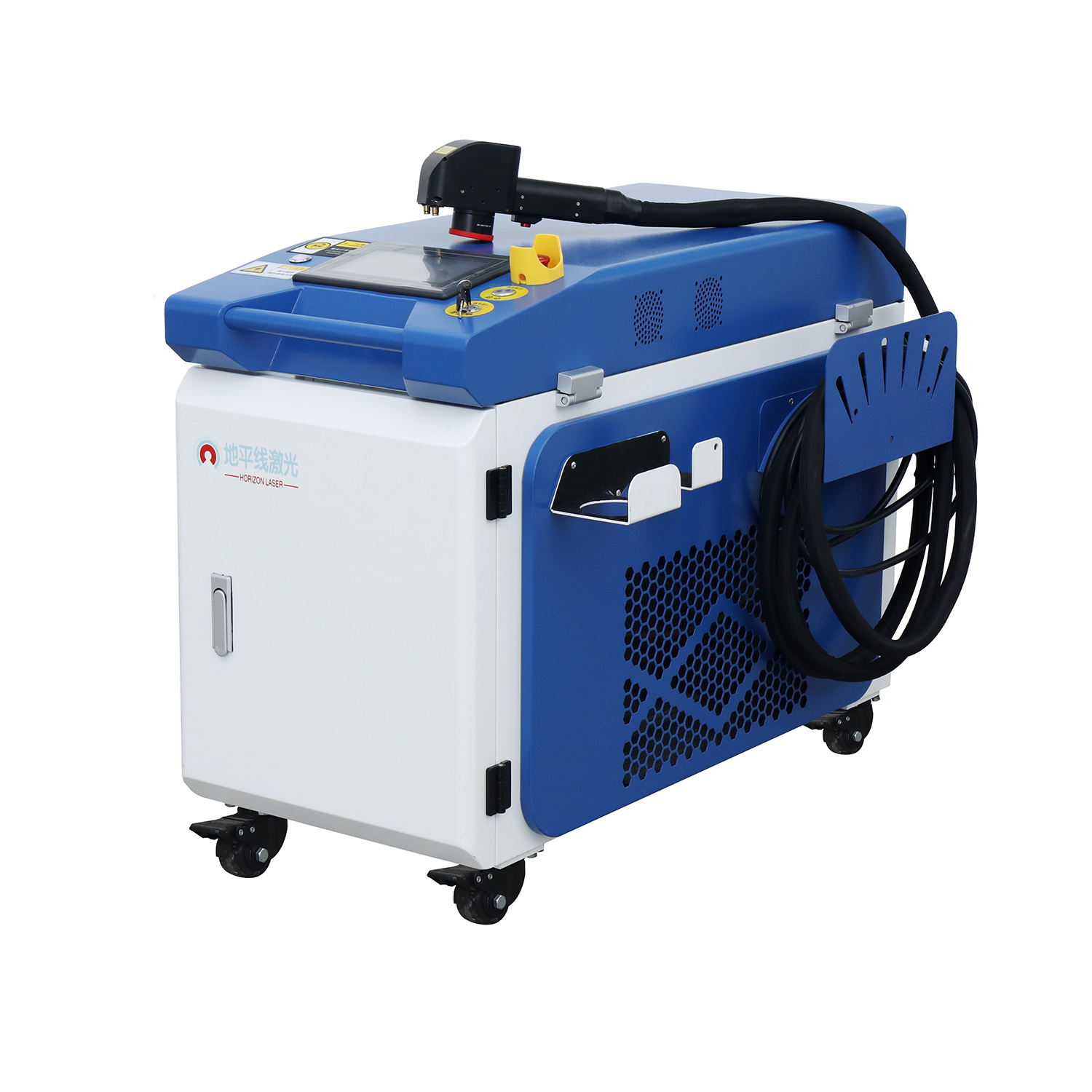

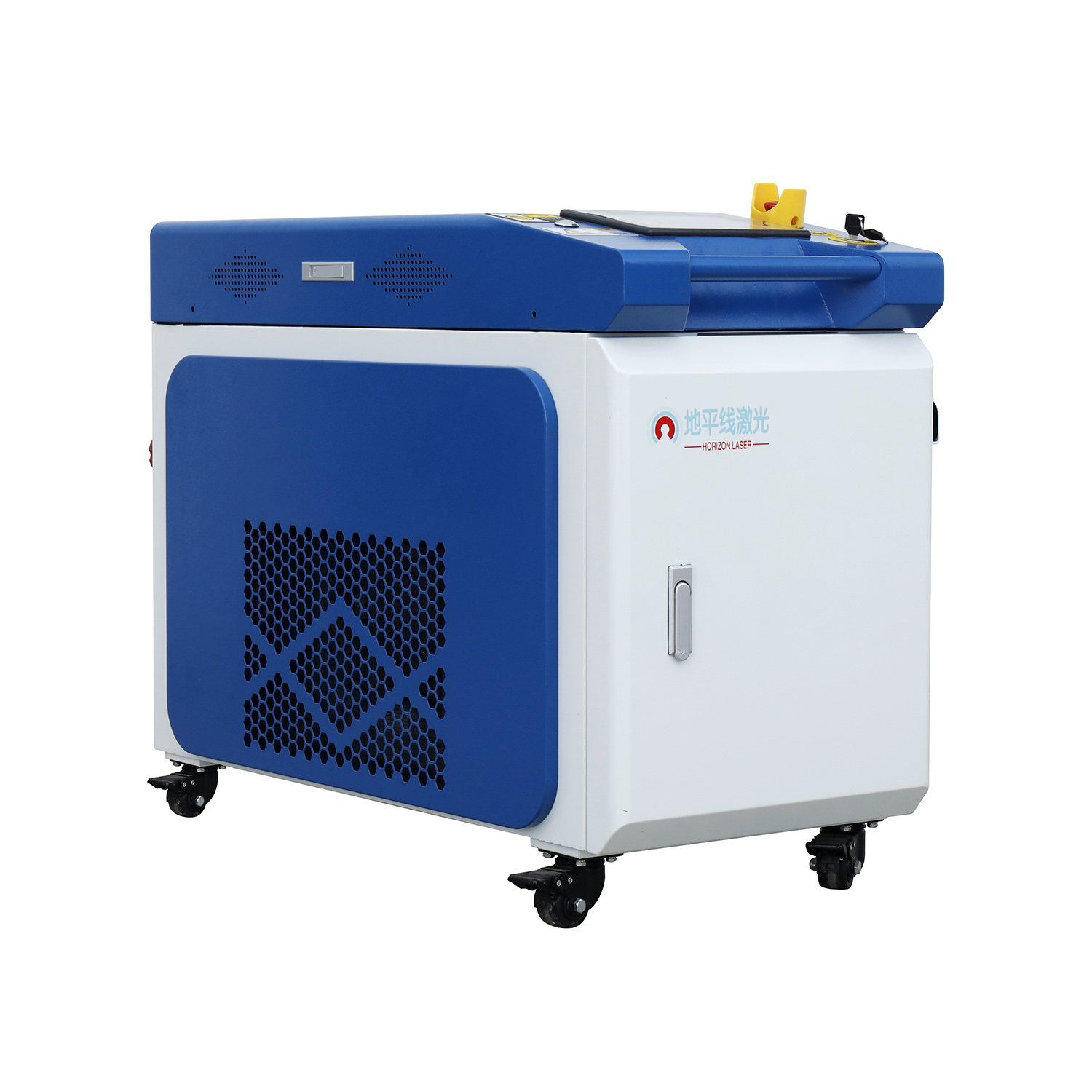

Machine Structure

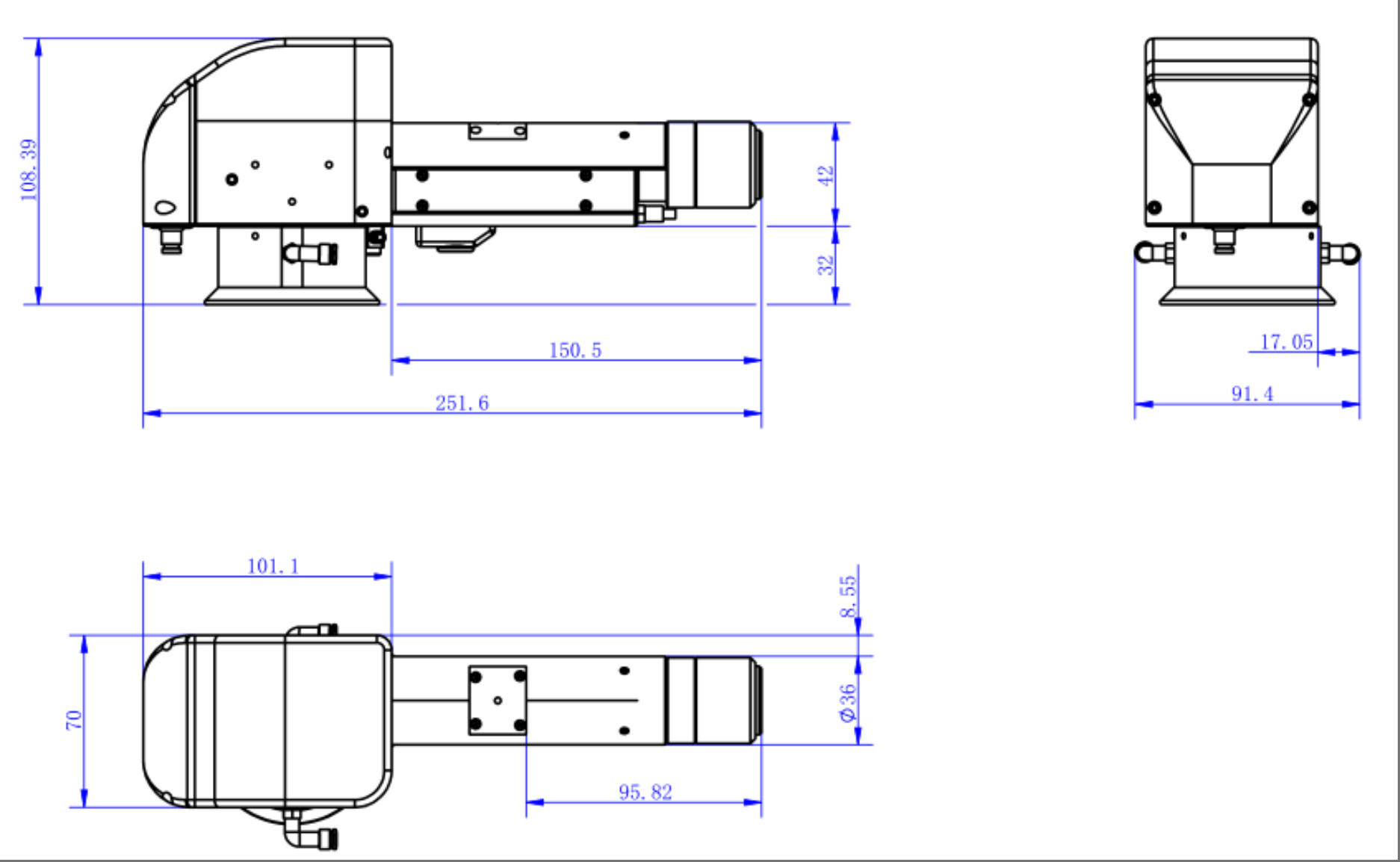

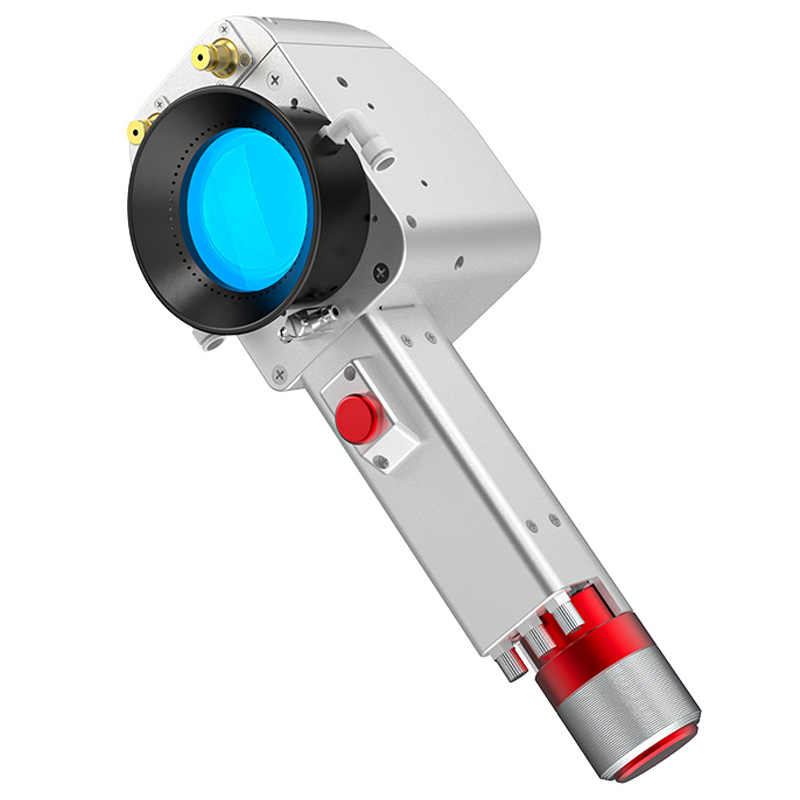

Cleaning head structure





Technical Parameters

Item

Characteristics

Typical Value

unit

Electrical Characteristics

Supply Voltage

220V (customizable 110V)

V

Maximum Power Consumption

4150

W

General Characteristics

Laser Power

500

W

Laser Wavelength

1064

nm

Maximum Single Pulse Energy

15&50

mJ

Fiber Cable Length

10m (customizable 15m)

m

Cooling Method

Water Cooling

Adjustable Cleaning Width

120mm@F300、100mm@F254

mm

Cleaning Head Weight

＜1.3

kg

Product Size

L*W*H：980*550*720

mm

Total Weight

107

kg

Product Advantages

  • The solution combines a pulsed laser with a dual oscillating mirror cleaning head. Compared to continuous laser cleaning, it features lower heat input, higher peak power, and stronger penetration, making it more suitable for cleaning precision products with delicate and refined results.
  • The dedicated cleaning laser ensures uniform beam energy distribution, delivering a fine cleaning effect without damaging the substrate and leaving no underlying patterns.
  • The cleaning head utilizes an ultra-high-speed dual oscillating mirror, enabling more efficient and thorough cleaning.
  • The cleaning width can reach up to 120mm @ F300 (100mm @ F254), meeting the requirements for efficient cleaning of large-sized products.
  • It comes with 9 sets of cleaning process parameters and 8 types of cleaning trajectory patterns, which can be directly applied to clean different products.
  • The cleaning head can be switched between handheld and fixed modes, catering to a wider range of cleaning scenarios.
  • With long-distance fiber transmission, it supports mobile operation and can clean large fixed equipment, products with complex shapes, and hidden areas.
  • It is capable of cleaning a wide range of materials, including rust, coatings, rubber, paint, resin, oil stains, and more.

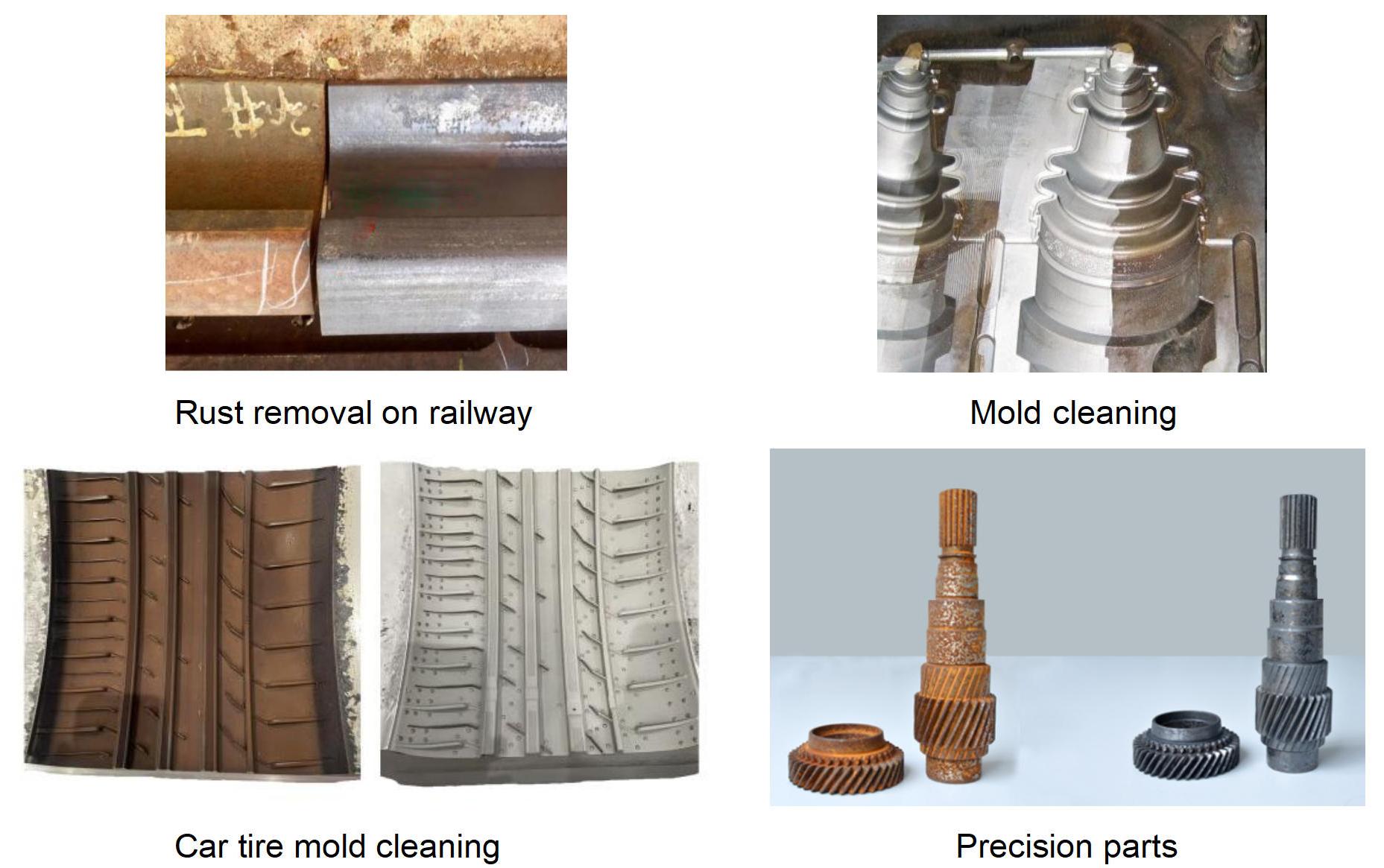

Application effect
